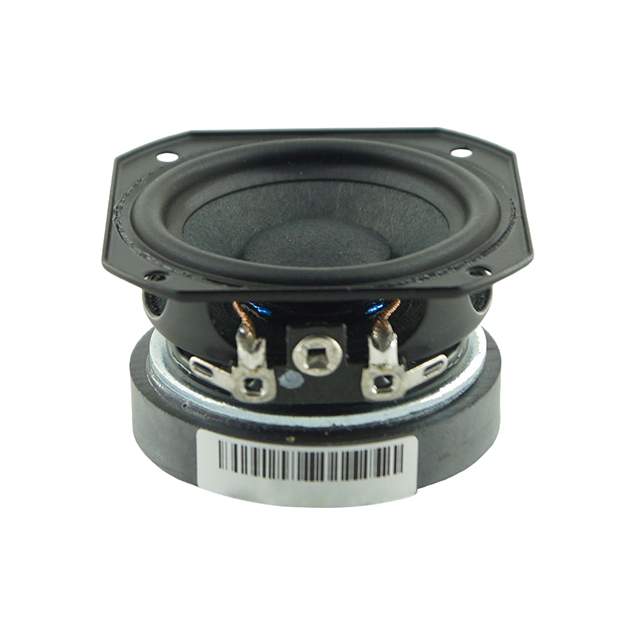

TC6FC00-04
Speakers
- Manufacturer No:
- TC6FC00-04
- Manufacture:
- Peerless by Tymphany
- Datasheet:
- TC6FC00-04
- Description:
- SPEAKER 4OHM 15W TOP PORT 83.2DB
In Stock
2253 pcs On sales
$12.76
Product Parameter
- Shape
- Round, Square Frame
- Efficiency - dBA
- 83.20
- Series
- TC
- Size / Dimension
- 2.165" L x 2.165" W (55.00mm x 55.00mm)
- Ratings
- -
- Efficiency - Type
- Half Space Sensitivity
- Impedance
- 3.89 Ohms
- Material - Magnet
- Nd-Fe-B
- Packaging
- Bulk
- Ingress Protection
- -
- Technology
- Magnetic
- Efficiency - Testing
- 1W/1M
- Part Status
- Active
- Height - Seated (Max)
- 1.339" (34.00mm)
- Termination
- Solder Eyelet(s)
- Frequency - Self Resonant
- 186.8Hz
- Port Location
- Top
- Power - Rated
- 15W
- Frequency Range
- 150Hz ~ 20kHz
- Type
- Full Range
- Material - Cone
- Paper
