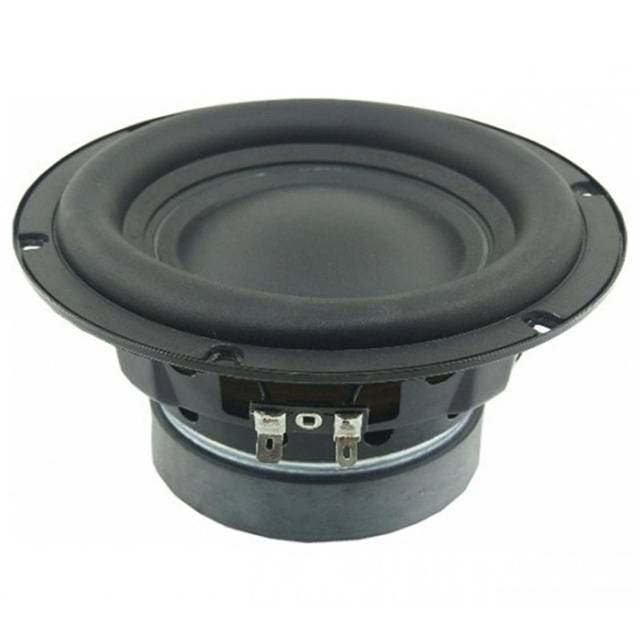

SBS-160F35AL01-04
Speakers
- Manufacturer No:
- SBS-160F35AL01-04
- Manufacture:
- Peerless by Tymphany
- Datasheet:
- SBS-160F35AL01-04
- Description:
- SPEAKR 4OHM 150W TOP PORT 81.2DB
In Stock
0 pcs On sales
$20.15
Product Parameter
- Frequency Range
- 40Hz ~ 500Hz
- Type
- Woofer
- Material - Cone
- Aluminum (AI)
- Shape
- Round
- Efficiency - dBA
- 81.20
- Series
- SBS
- Size / Dimension
- 6.614" Dia (168.00mm)
- Ratings
- -
- Efficiency - Type
- Half Space Sensitivity
- Impedance
- 6.1 Ohms
- Material - Magnet
- Ferrite
- Packaging
- Bulk
- Ingress Protection
- -
- Technology
- Magnetic
- Efficiency - Testing
- 1W/1M
- Part Status
- Active
- Height - Seated (Max)
- 3.689" (93.70mm)
- Termination
- Solder Eyelet(s)
- Frequency - Self Resonant
- 46.15Hz
- Port Location
- Top
- Power - Rated
- 150W
