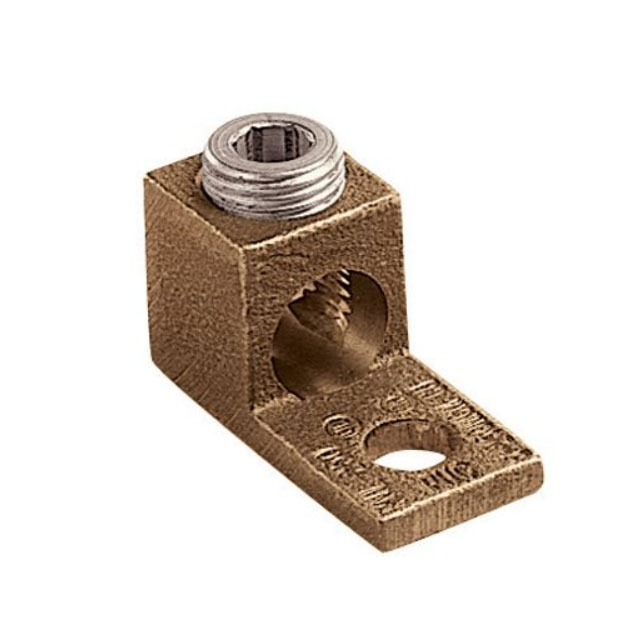

PNL-1000-2-3
Terminals - Rectangular Connectors
- Manufacturer No:
- PNL-1000-2-3
- Manufacture:
- Panduit Corp
- Datasheet:
- PNL-1000-2-3
- Description:
- CONN TERM RECT LUG 500-1000 MCM
In Stock
0 pcs On sales
$99.3
Product Parameter
- Wire Gauge
- 500-1000MCM (kcmil)
- Width - Outer Edges
- 1.750" (44.45mm)
- Part Status
- Active
- Diameter - Barrel ID
- -
- Termination
- Screw
- Diameter - Barrel OD
- -
- Mounting Type
- Free Hanging (In-Line)
- Stud/Tab Size
- -
- Tab Thickness
- 0.380" (9.65mm)
- Terminal Type
- Lug, Grounding
- Color
- -
- Contact Finish
- -
- Series
- Pan-Lug®
- Terminal Style
- Two Stud Holes
- Features
- With Screw
- Contact Material
- Copper Alloy
- Packaging
- Bulk
- Length - Overall
- 4.880" (123.95mm)
- Insulation
- Non-Insulated
- Diameter - Ring ID
- 0.560" (14.22mm)
