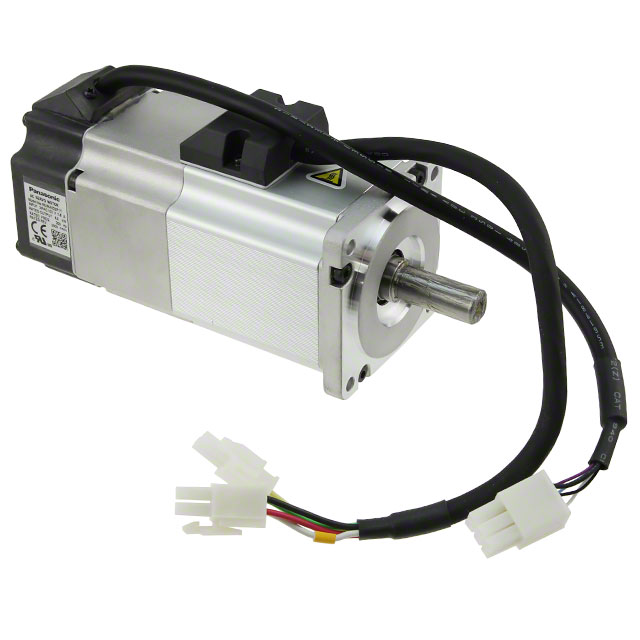

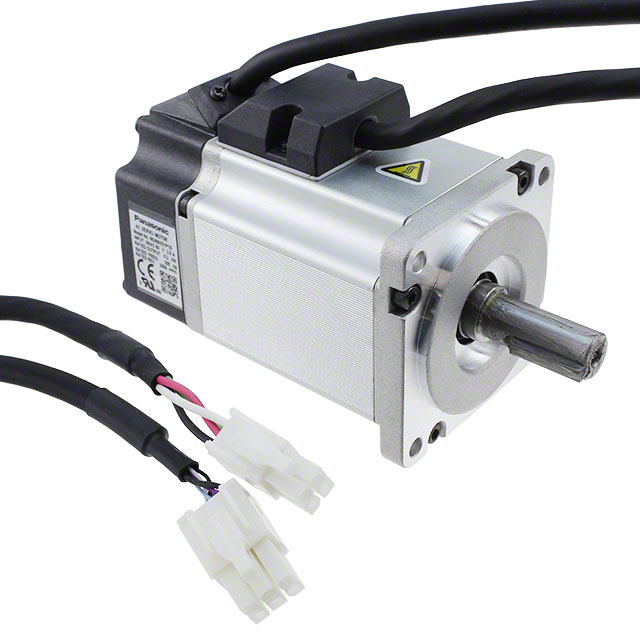

MUMA011P1S
Motors - AC, DC
- Manufacturer No:
- MUMA011P1S
- Manufacture:
- Panasonic Industrial Automation Sales
- Datasheet:
- MUMA011P1S
- Description:
- SERVOMOTOR 3000 RPM 100VAC
In Stock
1 pcs On sales
$284.89
Product Parameter
- Function
- Servomotor
- Operating Temperature
- 0°C ~ 40°C
- Approvals
- CE, CSA, cULus, TUV, UL
- Length - Shaft and Bearing
- 0.945" (24.00mm)
- Motor Type
- -
- Torque - Rated (oz-in / mNm)
- 45.32 / 320
- Part Status
- Active
- Torque - Max Momentary (oz-in / mNm)
- 134.5 / 950
- Encoder Type
- Incremental
- Power - Rated
- 100W
- Voltage - Rated
- 100VAC
- RPM
- 3000 RPM
- Diameter - Shaft
- 0.315" (8.00mm)
- Type
- AC Motor
- Size / Dimension
- Square - 1.654" x 1.654" (42.00mm x 42.00mm)
- Series
- MINAS E
- Termination Style
- Cable with Connector
- Weight
- 1.1 lbs (499 g)
- Gear Reduction Ratio
- -
- Features
- Key
- Mounting Hole Spacing
- 1.890" (48.00mm)
