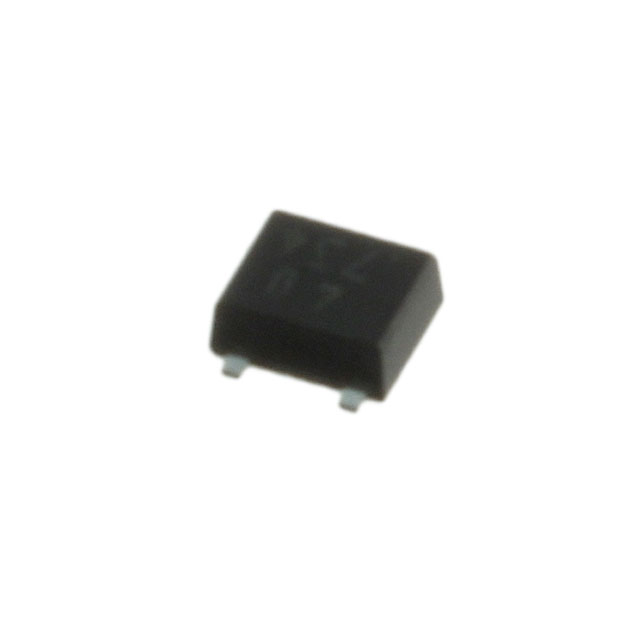

AN48820A-NL
Magnetic Sensors - Switches (Solid State)
- Manufacturer No:
- AN48820A-NL
- Manufacture:
- Panasonic Electronic Components
- Package:
- TO-236-3, SC-59, SOT-23-3
- Datasheet:
- AN48820A-NL
- Description:
- MAGNETIC SWITCH OMNIPOLAR MINI-3
In Stock
0 pcs On sales
$0
Product Parameter
- Technology
- Hall Effect
- Output Type
- Open Drain
- Part Status
- Obsolete
- Polarization
- Either
- Sensing Range
- ±6mT Trip, ±0.5mT Release
- Package / Case
- TO-236-3, SC-59, SOT-23-3
- Test Condition
- 25°C
- Voltage - Supply
- 2.5V ~ 3.5V
- Series
- -
- Operating Temperature
- -25°C ~ 75°C (TA)
- Features
- -
- Current - Output (Max)
- 15mA
- Function
- Omnipolar Switch
- Current - Supply (Max)
- 3.5µA (Typ)
- Packaging
- Digi-Reel®
- Supplier Device Package
- MINI-3DRA
