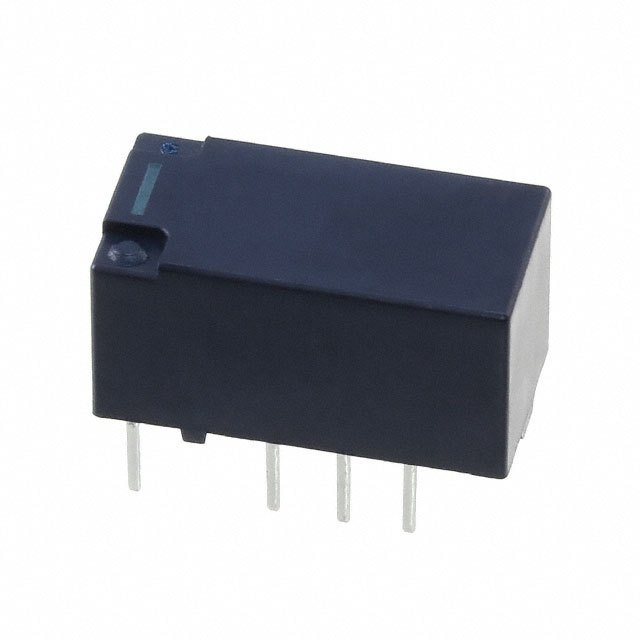

TXS2-12V
Signal Relays, Up to 2 Amps
- Manufacturer No:
- TXS2-12V
- Manufacture:
- Panasonic Electric Works
- Datasheet:
- TXS2-12V
- Description:
- RELAY GEN PURPOSE DPDT 1A 12VDC
In Stock
3301 pcs On sales
$4.49
Product Parameter
- Packaging
- Tube
- Contact Material
- Silver (Ag), Gold (Au)
- Relay Type
- General Purpose
- Switching Voltage
- 110VDC - Max
- Part Status
- Active
- Termination Style
- PC Pin
- Seal Rating
- Sealed - Fully
- Must Operate Voltage
- 9.6 VDC
- Coil Current
- 4.2mA
- Must Release Voltage
- 1.2 VDC
- Coil Voltage
- 12VDC
- Operating Temperature
- -40°C ~ 70°C
- Contact Form
- DPDT (2 Form C)
- Contact Rating (Current)
- 1A
- Operate Time
- 5ms
- Release Time
- 5ms
- Series
- TX-S
- Mounting Type
- Through Hole
- Features
- -
- Coil Insulation
- -
- Coil Type
- Non Latching
- Coil Resistance
- 2.88 kOhms
