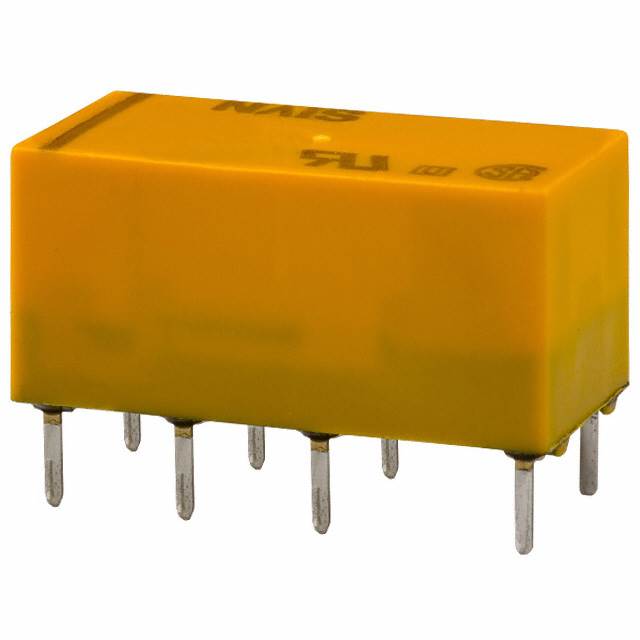

DS2Y-S-DC12V
Signal Relays, Up to 2 Amps
- Manufacturer No:
- DS2Y-S-DC12V
- Manufacture:
- Panasonic Electric Works
- Datasheet:
- DS2Y-S-DC12V
- Description:
- RELAY GEN PURPOSE DPDT 2A 12VDC
In Stock
2272 pcs On sales
$3.14
Product Parameter
- Release Time
- 3ms
- Series
- DS2Y
- Mounting Type
- Through Hole
- Features
- -
- Coil Insulation
- -
- Coil Type
- Non Latching
- Coil Resistance
- 720 Ohms
- Packaging
- Tube
- Contact Material
- Silver (Ag), Gold (Au)
- Relay Type
- General Purpose
- Switching Voltage
- 250VAC, 220VDC - Max
- Part Status
- Active
- Termination Style
- PC Pin
- Seal Rating
- -
- Must Operate Voltage
- 8.4 VDC
- Coil Current
- 16.7mA
- Must Release Voltage
- 1.2 VDC
- Coil Voltage
- 12VDC
- Operating Temperature
- -40°C ~ 70°C
- Contact Form
- DPDT (2 Form C)
- Contact Rating (Current)
- 2A
- Operate Time
- 4ms
