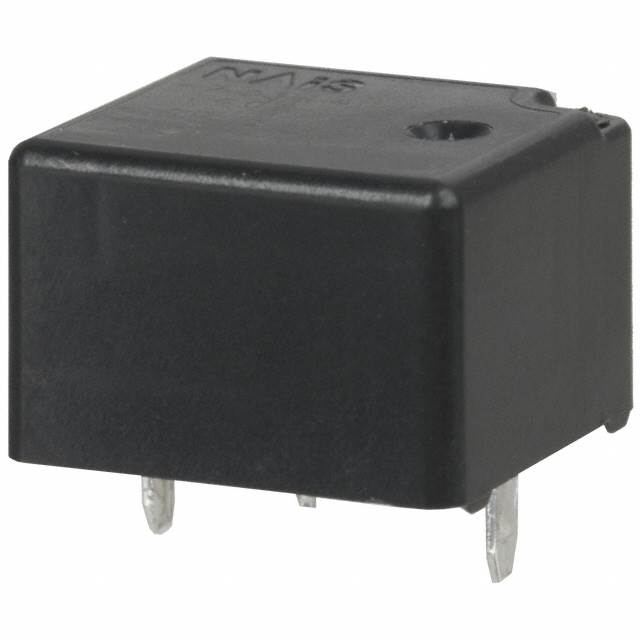

CP1A-12V
Automotive Relays
- Manufacturer No:
- CP1A-12V
- Manufacture:
- Panasonic Electric Works
- Datasheet:
- CP1A-12V
- Description:
- RELAY AUTOMOTIVE SPST 20A 12V
In Stock
5351 pcs On sales
$3.34
Product Parameter
- Operate Time
- 10ms
- Release Time
- 10ms
- Mounting Type
- Through Hole
- Series
- CP
- Coil Resistance
- 225 Ohms
- Features
- Sealed - Fully
- Contact Material
- Silver Alloy, Cadmium Free
- Coil Type
- Non Latching
- Switching Voltage
- 14VDC - Nom
- Packaging
- Tube
- Termination Style
- PC Pin
- Coil Power
- 640mW
- Must Operate Voltage
- 7.2 VDC
- Part Status
- Active
- Must Release Voltage
- 1 VDC
- Coil Current
- 53.3mA
- Operating Temperature
- -40°C ~ 85°C
- Coil Voltage
- 12VDC
- Contact Rating (Current)
- 20A
- Contact Form
- SPST-NO (1 Form A)
