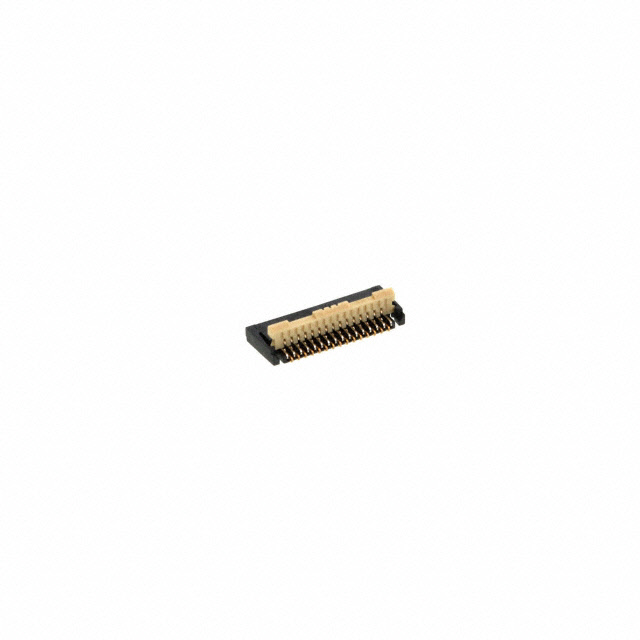

AYF214135A
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- AYF214135A
- Manufacture:
- Panasonic Electric Works
- Datasheet:
- AYF214135A
- Description:
- CONN FPC 41POS 0.2MM SMD R/A
In Stock
504 pcs On sales
$3.53
Product Parameter
- Packaging
- Bulk
- Contact Material
- Copper Alloy
- Part Status
- Active
- Actuator Material
- Liquid Crystal Polymer (LCP)
- Termination
- Solder
- FFC, FCB Thickness
- 0.20mm
- Housing Color
- -
- Height Above Board
- 0.035" (0.88mm)
- Mating Cycles
- 20
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 41
- Actuator Color
- -
- Current Rating (Amps)
- 0.2A per Contact
- Cable End Type
- Tapered
- Operating Temperature
- -55°C ~ 85°C
- Contact Finish
- Gold
- Connector/Contact Type
- Contacts, Top and Bottom
- Pitch
- 0.008" (0.20mm)
- Flat Flex Type
- FPC
- Contact Finish Thickness
- -
- Series
- Y2B
- Voltage Rating
- 50V
- Material Flammability Rating
- UL94 V-0
- Features
- -
- Locking Feature
- Rotary Lock, Backlock
