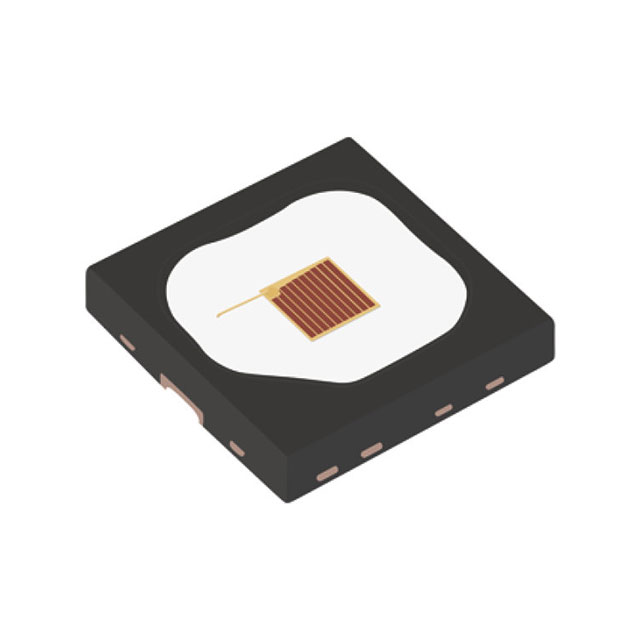

LR H9GP-HZKX-1-1-350-R18-Z
LED Lighting - Color
- Manufacturer No:
- LR H9GP-HZKX-1-1-350-R18-Z
- Manufacture:
- OSRAM Opto Semiconductors, Inc.
- Package:
- 1515 (3838 Metric)
- Datasheet:
- LR H9GP-HZKX-1-1-350-R18-Z
- Description:
- LED OSLON BLACK RED 626NM 3SMD
In Stock
0 pcs On sales
$0.91
Product Parameter
- Current - Test
- 350mA
- Package / Case
- 1515 (3838 Metric)
- Size / Dimension
- 0.152" L x 0.152" W (3.85mm x 3.85mm)
- Temperature - Test
- 25°C
- Color
- Red
- Height - Seated (Max)
- 0.095" (2.41mm)
- Series
- OSLON® Black
- Supplier Device Package
- SMD
- Packaging
- Tape & Reel (TR)
- Lumens/Watt @ Current - Test
- 81 lm/W
- Wavelength
- 626nm (620nm ~ 632nm)
- Voltage - Forward (Vf) (Typ)
- 2.15V
- Part Status
- Active
- Thermal Resistance of Package
- 6.5°C/W
- Current - Max
- 1A
- Flux @ Current/Temperature - Test
- 61lm (39lm ~ 82lm)
- Mounting Type
- Surface Mount
- Viewing Angle
- 90°
