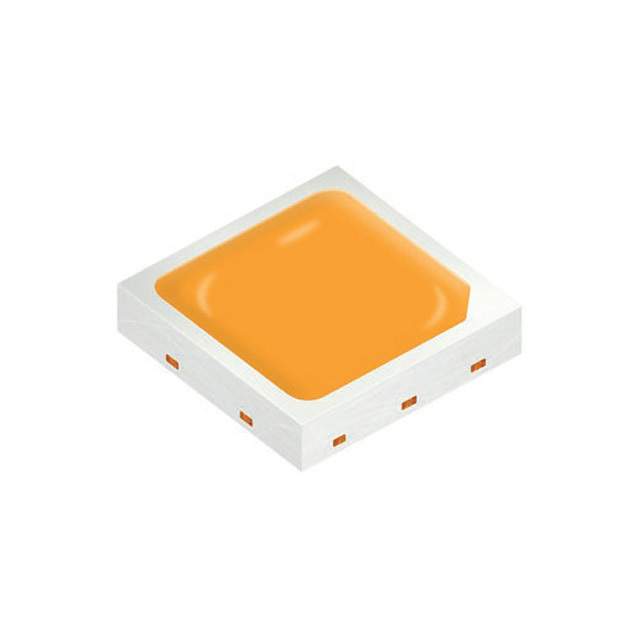

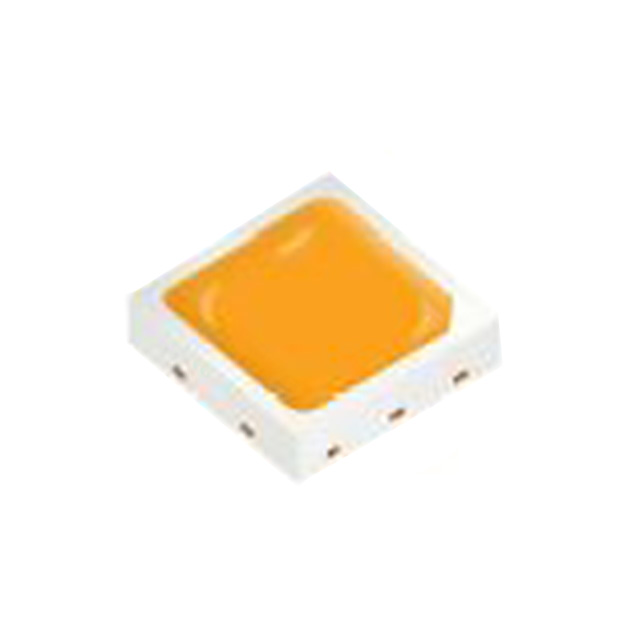

GW QSLR31.EM-LWLY-XX51-1-150-R18
LED Lighting - White
- Manufacturer No:
- GW QSLR31.EM-LWLY-XX51-1-150-R18
- Manufacture:
- OSRAM Opto Semiconductors, Inc.
- Package:
- 1212 (3030 Metric)
- Datasheet:
- GW QSLR31.EM-LWLY-XX51-1-150-R18
- Description:
- OSCONIQ S 3030 LED LIGHTING
In Stock
0 pcs On sales
$0
Product Parameter
- Viewing Angle
- 120°
- Current - Test
- 150mA
- Package / Case
- 1212 (3030 Metric)
- Size / Dimension
- 0.118" L x 0.118" W (3.00mm x 3.00mm)
- Height - Seated (Max)
- 0.030" (0.75mm)
- Color
- White, Cool
- Supplier Device Package
- SMD
- Series
- OSCONIQ® S 3030
- CRI (Color Rendering Index)
- 80
- CCT (K)
- 6500K
- Flux @ 25°C, Current - Test
- 143lm (135lm ~ 150lm)
- Packaging
- Digi-Reel®
- Flux @ 85°C, Current - Test
- -
- Part Status
- Discontinued at Digi-Key
- Lumens/Watt @ Current - Test
- 149 lm/W
- Current - Max
- 200mA
- Voltage - Forward (Vf) (Typ)
- 6.4V
- Mounting Type
- Surface Mount
- Thermal Resistance of Package
- 9.5°C/W
