GH CS8PM1.24-4T2U-1
LED Lighting - Color
- Manufacturer No:
- GH CS8PM1.24-4T2U-1
- Manufacture:
- OSRAM Opto Semiconductors, Inc.
- Package:
- 1212 (3030 Metric)
- Datasheet:
- GH CS8PM1.24-4T2U-1
- Description:

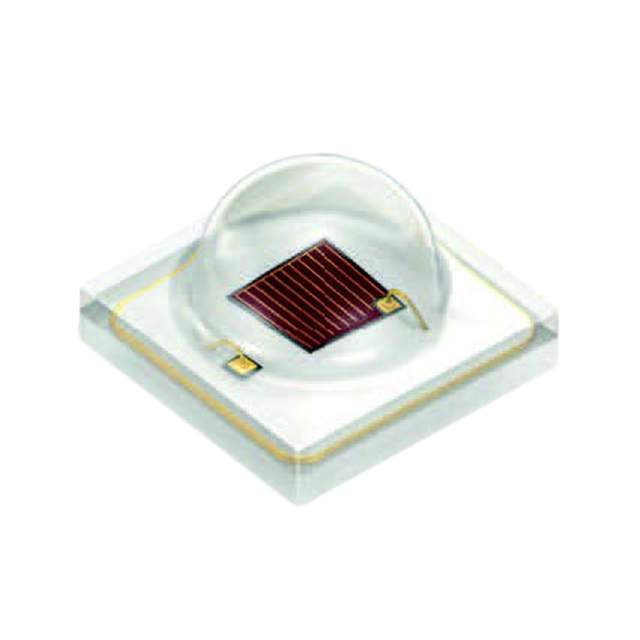

- LED OSLON SSL80 RED 657NM SMD
In Stock
3187 pcs On sales
$0
Product Parameter
- Mounting Type
- Surface Mount
- Viewing Angle
- 80°
- Current - Test
- 350mA
- Package / Case
- 1212 (3030 Metric)
- Size / Dimension
- 0.118" L x 0.118" W (3.00mm x 3.00mm)
- Temperature - Test
- 25°C
- Color
- Red
- Height - Seated (Max)
- 0.091" (2.31mm)
- Series
- OSLON® SSL 80
- Supplier Device Package
- SMD
- Packaging
- Digi-Reel®
- Lumens/Watt @ Current - Test
- -
- Wavelength
- 656nm (646nm ~ 666nm)
- Voltage - Forward (Vf) (Typ)
- 2.15V
- Part Status
- Active
- Thermal Resistance of Package
- 5.3°C/W
- Current - Max
- 1A
- Flux @ Current/Temperature - Test
- 530mW (400mW ~ 560mW)
