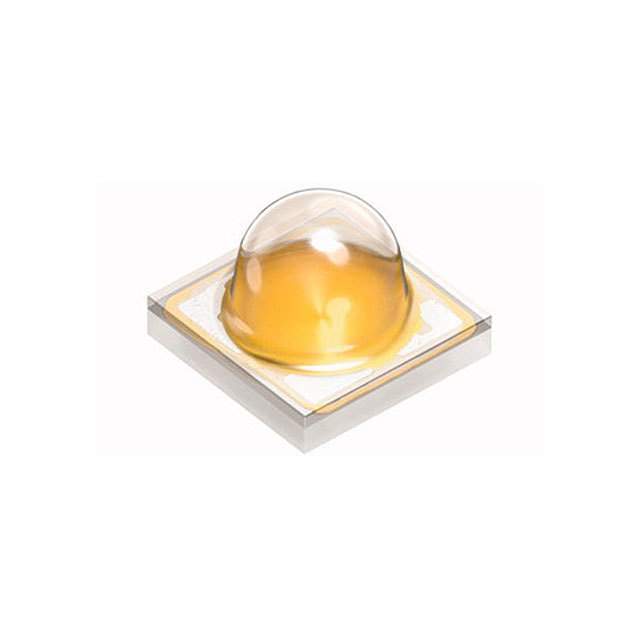

GF CS8PM2.24-4S2T-1-0-350-R18
LED Lighting - Color
- Manufacturer No:
- GF CS8PM2.24-4S2T-1-0-350-R18
- Manufacture:
- OSRAM Opto Semiconductors, Inc.
- Package:
- 1212 (3030 Metric)
- Datasheet:
- GF CS8PM2.24-4S2T-1-0-350-R18
- Description:
- LED OSLON SSL80 RED 727NM SMD
In Stock
0 pcs On sales
$0
Product Parameter
- Current - Test
- 350mA
- Package / Case
- 1212 (3030 Metric)
- Size / Dimension
- 0.118" L x 0.118" W (3.00mm x 3.00mm)
- Temperature - Test
- 25°C
- Color
- Red
- Height - Seated (Max)
- 0.097" (2.46mm)
- Series
- OSLON® SSL 80
- Supplier Device Package
- SMD
- Packaging
- Digi-Reel®
- Lumens/Watt @ Current - Test
- -
- Wavelength
- 727nm (Typ)
- Voltage - Forward (Vf) (Typ)
- 1.85V
- Part Status
- Discontinued at Digi-Key
- Thermal Resistance of Package
- -
- Current - Max
- 1A
- Flux @ Current/Temperature - Test
- 269mW (224mW ~ 315mW)
- Mounting Type
- Surface Mount
- Viewing Angle
- 80°
