ODB600PT-24MB
DC Brushless Fans (BLDC)
- Manufacturer No:
- ODB600PT-24MB
- Manufacture:
- Orion Fans
- Datasheet:
- ODB600PT-24MB
- Description:
- FAN BLOWER 120.5X32MM 24VDC WIRE
In Stock
0 pcs On sales
$23.27
Product Parameter
- Fan Type
- Blower
- Size / Dimension
- Square/Rounded - 120.5mm L x 120.5mm H
- Features
- -
- Ingress Protection
- -
- Approvals
- cURus
- Current Rating (Amps)
- 0.300A
- Part Status
- Active
- Operating Temperature
- -4 ~ 176°F (-20 ~ 80°C)
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- RPM
- 2500 RPM
- Voltage Range
- 10 ~ 29VDC
- Noise
- 42.0 dB
- Static Pressure
- 0.470 in H2O (117.1 Pa)
- Width
- 32.00mm
- Voltage - Rated
- 24VDC
- Series
- ODB600PT
- Lifetime @ Temp.
- -
- Weight
- -
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Air Flow
- 25.0 CFM (0.700m³/min)
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
ODB600PT-24MB Relevant information

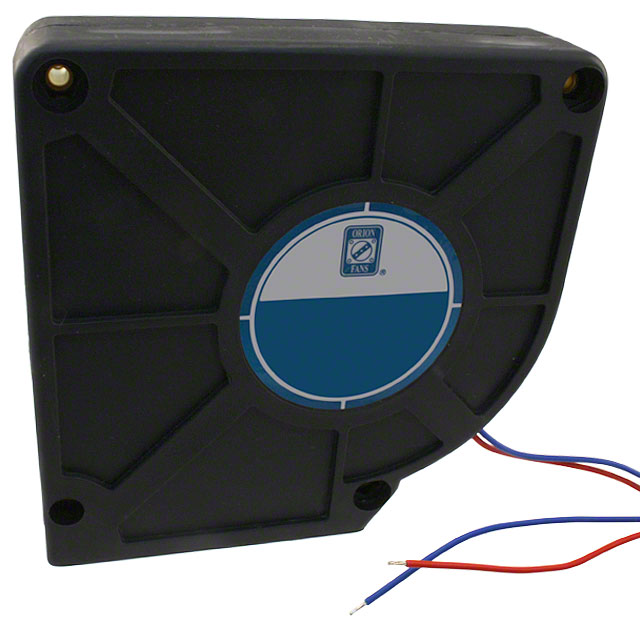

ODB600PT-12LB
FAN BLOWER 120.5X32MM 12VDC WIRE

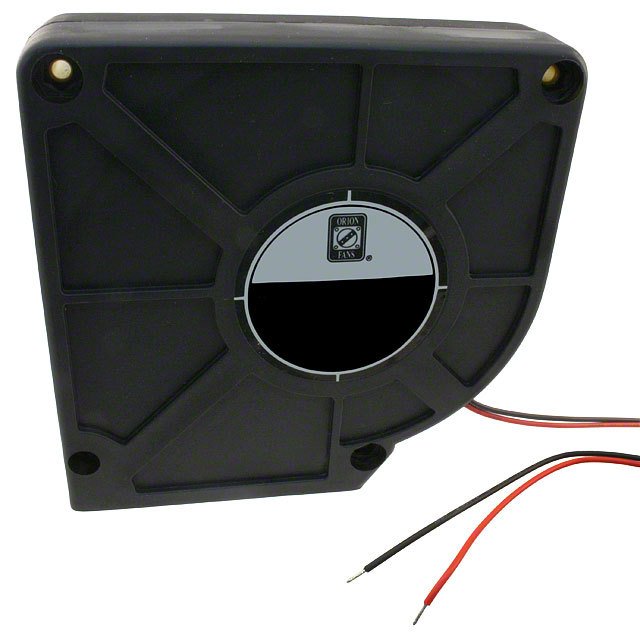

ODB600PT-24HB
