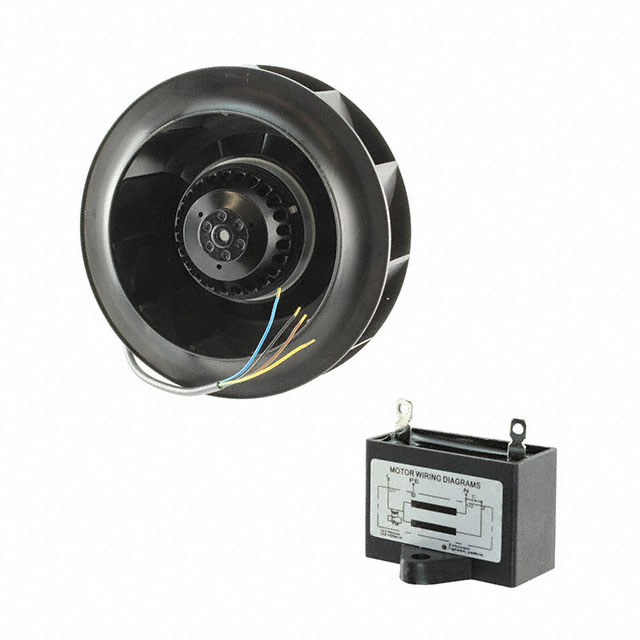

OAB220-11-1
AC Fans
- Manufacturer No:
- OAB220-11-1
- Manufacture:
- Orion Fans
- Datasheet:
- OAB220-11-1
- Description:
- FAN IMP MTRZD 220X71 115V W/CAP
In Stock
0 pcs On sales
$90.59
Product Parameter
- Fan Type
- Motorized Impellers
- Material - Frame
- Aluminum
- Features
- -
- Size / Dimension
- Round - 223mm Dia
- Approvals
- cURus, TUV
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.980A
- Termination
- 2 Wire Leads
- Operating Temperature
- -40 ~ 140°F (-40 ~ 60°C)
- Bearing Type
- Ball
- RPM
- 2650 RPM
- Power (Watts)
- 117W
- Noise
- 70.0 dB
- Voltage Range
- 100 ~ 125VAC
- Width
- 71.00mm
- Static Pressure
- 1.500 in H2O (373.6 Pa)
- Series
- OAB220
- Voltage - Rated
- 115VAC
- Weight
- -
- Lifetime @ Temp.
- 40000 Hrs @ 40°C
- Air Flow
- 530.0 CFM (14.84m³/min)
- Material - Blade
- Thermoplastic
