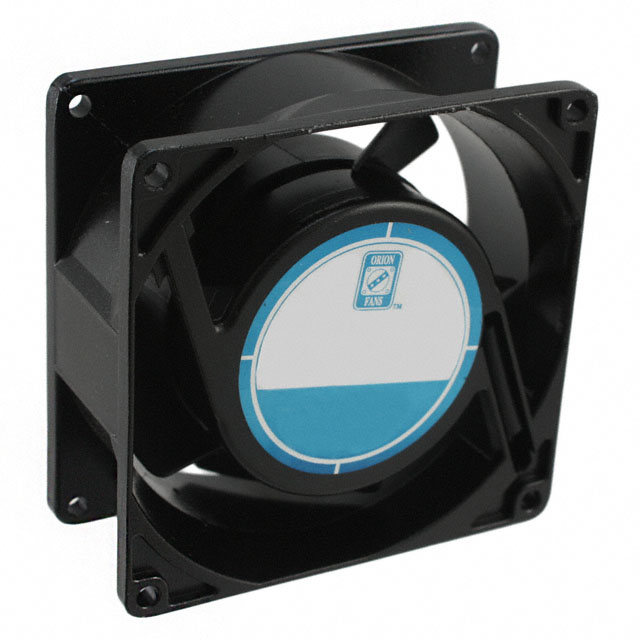

OA938AP-11-1TB1855
AC Fans
- Manufacturer No:
- OA938AP-11-1TB1855
- Manufacture:
- Orion Fans
- Datasheet:
- OA938AP-11-1TB1855
- Description:
- FAN AXIAL 92X38MM 115VAC TERM
In Stock
70 pcs On sales
$27.5
Product Parameter
- Features
- -
- Size / Dimension
- Square - 92mm L x 92mm H
- Approvals
- cURus, TUV
- Ingress Protection
- IP55 - Dust Protected, Water Resistant
- Part Status
- Active
- Current Rating (Amps)
- -
- Termination
- 2 Terminals
- Operating Temperature
- -22 ~ 176°F (-30 ~ 80°C)
- Bearing Type
- Ball
- RPM
- 3150 RPM
- Power (Watts)
- 15.00W
- Noise
- 40.0 dB(A)
- Voltage Range
- 100 ~ 120VAC
- Width
- 38.00mm
- Static Pressure
- 0.220 in H2O (54.8 Pa)
- Series
- OA938
- Voltage - Rated
- 115VAC
- Weight
- 1.1 lbs (499 g)
- Lifetime @ Temp.
- 50000 Hrs @ 55°C
- Air Flow
- 55.0 CFM (1.54m³/min)
- Material - Blade
- Metal
- Fan Type
- Tubeaxial
- Material - Frame
- Aluminum
