OA162AP-11-1TB1855
AC Fans
- Manufacturer No:
- OA162AP-11-1TB1855
- Manufacture:
- Orion Fans
- Datasheet:
- OA162AP-11-1TB1855
- Description:
- FAN AXIAL 172X55MM 115VAC TERM
In Stock
0 pcs On sales
$0
Product Parameter
- Termination
- 2 Terminals
- Operating Temperature
- -22 ~ 176°F (-30 ~ 80°C)
- Bearing Type
- Ball
- RPM
- 3200 RPM
- Power (Watts)
- 42.00W
- Noise
- 54.0 dB(A)
- Voltage Range
- 100 ~ 120VAC
- Width
- 55.00mm
- Static Pressure
- 0.420 in H2O (104.6 Pa)
- Series
- OA162
- Voltage - Rated
- 115VAC
- Weight
- 2.7 lbs (1.2 kg)
- Lifetime @ Temp.
- 50000 Hrs @ 55°C
- Air Flow
- 210.0 CFM (5.88m³/min)
- Material - Blade
- Metal
- Fan Type
- Tubeaxial
- Material - Frame
- Aluminum
- Features
- -
- Size / Dimension
- Rectangular/Rounded - 172mm L x 150mm H
- Approvals
- cURus
- Ingress Protection
- IP55 - Dust Protected, Water Resistant
- Part Status
- Obsolete
- Current Rating (Amps)
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
OA162AP-11-1TB1855 Relevant information
OA162-5E-115WB
FAN AXIAL 172X55MM 115VAC WIRE
OA162-5E-230WB
FAN AXIAL 172X55MM 230VAC WIRE
OA162AP-11-1TB1855
FAN AXIAL 172X55MM 115VAC TERM

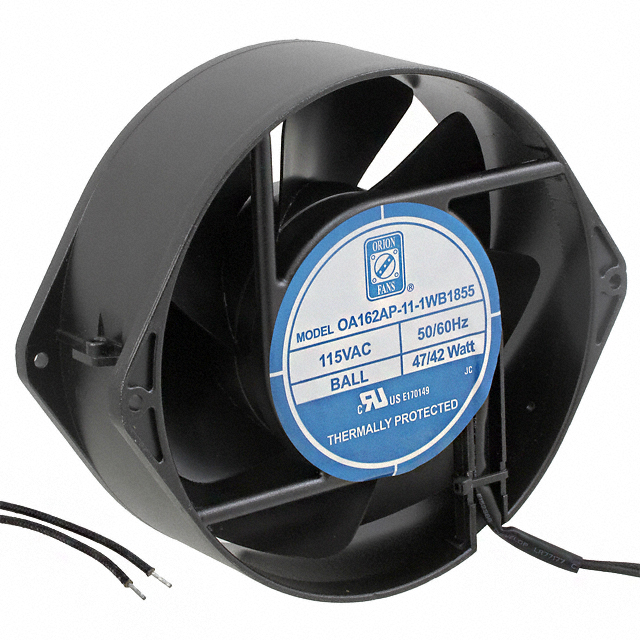

OA162AP-11-1WB1855
FAN AXIAL 172X55MM 115VAC WIRE
OA162AP-22-1TB1855
FAN AXIAL 172X55MM 230VAC TERM

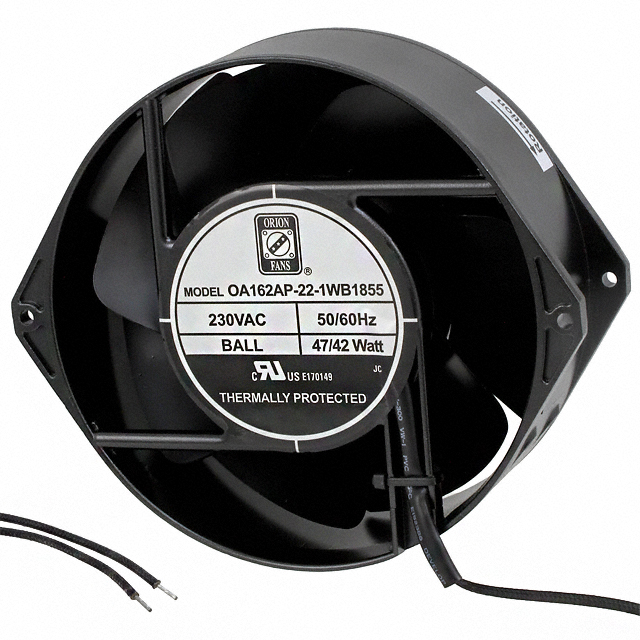

OA162AP-22-1WB1855
