MHDGWT-0000-000N0BM440E-SB01
LED Lighting - COBs, Engines, Modules, Strips
- Manufacturer No:
- MHDGWT-0000-000N0BM440E-SB01
- Manufacture:
- Opulent Americas
- Datasheet:
- MHDGWT-0000-000N0BM440E-SB01
- Description:

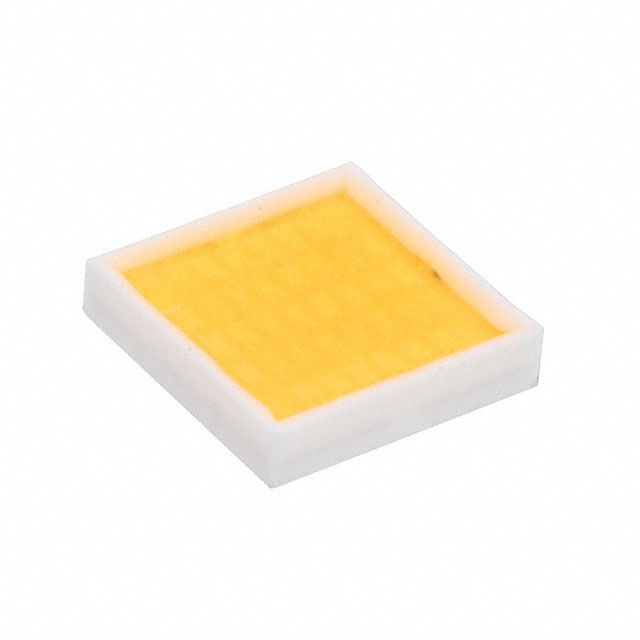

- LED MODULE MHD-G 4000K STARBOARD
In Stock
200 pcs On sales
$10.8
Product Parameter
- Part Status
- Active
- Configuration
- Starboard
- Current - Max
- 500mA
- Type
- LED Module
- Viewing Angle
- 115°
- Color
- White, Neutral
- Current - Test
- 350mA
- Height
- 1.5mm
- Size / Dimension
- 19.89mm Dia
- Series
- MHD-G
- Temperature - Test
- 85°C
- CCT (K)
- 4000K 5-Step MacAdam Ellipse
- CRI (Color Rendering Index)
- 70
- Features
- -
- Light Emitting Surface (LES)
- -
- Lens Type
- Flat
- Lumens/Watt @ Current - Test
- 121 lm/W
- Packaging
- Tray
- Voltage - Forward (Vf) (Typ)
- 36.4V
- Wavelength
- -
- Flux @ Current/Temperature - Test
- 1538lm (1485lm ~ 1590lm)
