EDZ1100/14
Terminal Blocks - Headers, Plugs and Sockets
- Manufacturer No:
- EDZ1100/14
- Manufacture:
- On-Shore Technology, Inc.
- Datasheet:
- EDZ1100/14
- Description:
- TERM BLOCK PLUG 14POS 5.08MM
In Stock
121 pcs On sales
$10.56
Product Parameter
- Mounting Type
- Free Hanging (In-Line)
- Number of Positions
- 14
- Torque - Screw
- 0.5 Nm (4.4 Lb-In)
- Positions Per Level
- 14
- Type
- Plug, Female Sockets
- Plug Wire Entry
- -
- Contact Mating Finish
- -
- Color
- Green
- Contact Material
- Copper Tin Alloy
- Operating Temperature
- -30°C ~ 105°C
- Pitch
- 0.200" (5.08mm)
- Number of Levels
- 1
- Wire Gauge or Range - AWG
- 10-22 AWG
- Series
- EDZ1100
- Insulation Height
- -
- Wire Gauge or Range - mm²
- 2.5mm²
- Features
- -
- Termination Style
- Screw
- Material Flammability Rating
- UL94 V-0
- Packaging
- Bulk
- Wire Strip Length
- 7mm
- Screw Size
- -
- Header Orientation
- -
- Part Status
- Active
- Ingress Protection
- -
- Voltage - UL
- 300V
- Contact Tail Length
- -
- Current - IEC
- -
- Dielectric Material
- Polyamide (PA), Nylon
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
EDZ1100/14 Relevant information
EDZ1100/10
TERM BLOCK PLUG 10POS 5.08MM

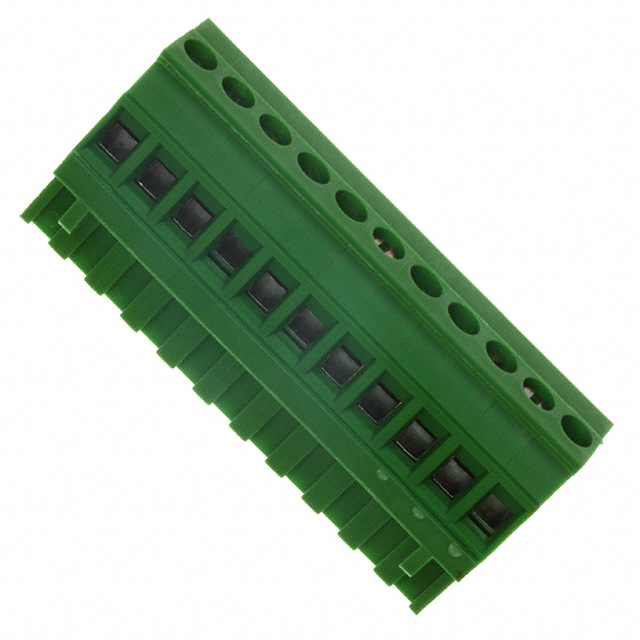

EDZ1100/11
