ED800/3
Terminal Blocks - Wire to Board
- Manufacturer No:
- ED800/3
- Manufacture:
- On-Shore Technology, Inc.
- Datasheet:
- ED800/3
- Description:

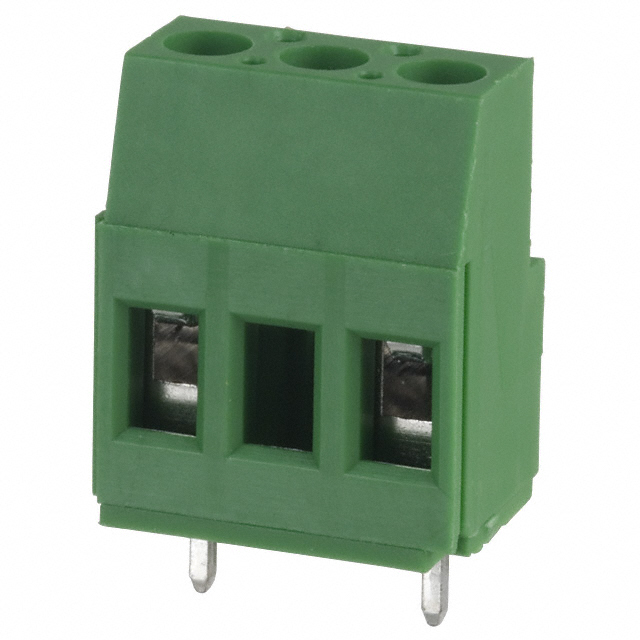

- TERM BLK 3P SIDE ENTRY 10MM PCB
In Stock
0 pcs On sales
$1.3
Product Parameter
- Pitch
- 0.394" (10.00mm)
- Wire Termination
- Screw
- Series
- ED800
- Mating Orientation
- Horizontal with Board
- Current
- 15A
- Dielectric Material
- Polyamide (PA), Nylon
- Voltage
- 250V
- Positions Per Level
- 3
- Features
- -
- Operating Temperature
- -30°C ~ 105°C
- Packaging
- Bulk
- Clamp Material - Plating
- Copper
- Wire Gauge
- 14-22 AWG
- Screw Material - Plating
- -
- Part Status
- Active
- Contact Material - Plating
- Brass
- Screw Thread
- M3
- Mounting Type
- Through Hole
- Torque - Screw
- 0.5 Nm (4.4 Lb-In)
- Color
- Green
- Number of Levels
- 1
