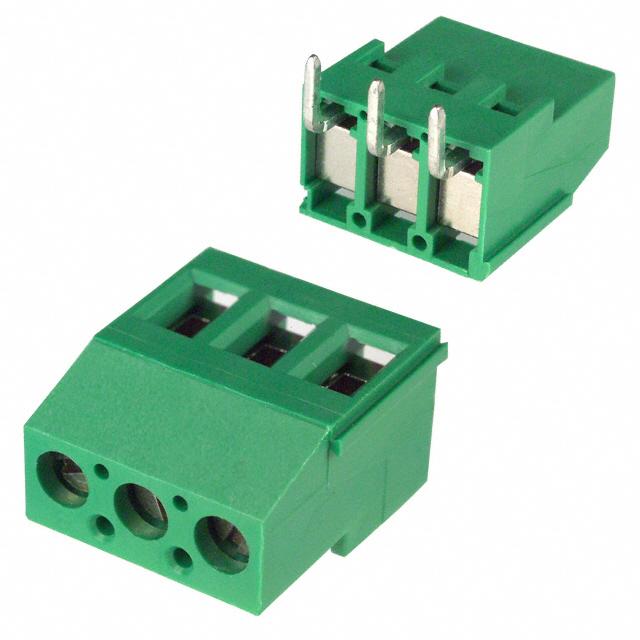

ED700/3
Terminal Blocks - Wire to Board
- Manufacturer No:
- ED700/3
- Manufacture:
- On-Shore Technology, Inc.
- Datasheet:
- ED700/3
- Description:
- TERM BLK 3POS SIDE ENTRY 5MM PCB
In Stock
1160 pcs On sales
$1.84
Product Parameter
- Voltage
- 300V
- Positions Per Level
- 3
- Features
- Interlocking (Side)
- Operating Temperature
- -30°C ~ 105°C
- Packaging
- Bulk
- Clamp Material - Plating
- Copper
- Wire Gauge
- 12-30 AWG
- Screw Material - Plating
- -
- Part Status
- Active
- Contact Material - Plating
- Brass
- Screw Thread
- M3
- Mounting Type
- Through Hole
- Torque - Screw
- 0.5 Nm (4.4 Lb-In)
- Color
- Green
- Number of Levels
- 1
- Pitch
- 0.197" (5.00mm)
- Wire Termination
- Screw - Rising Cage Clamp
- Series
- ED700
- Mating Orientation
- Horizontal with Board
- Current
- 20A
- Dielectric Material
- Polyamide (PA), Nylon
