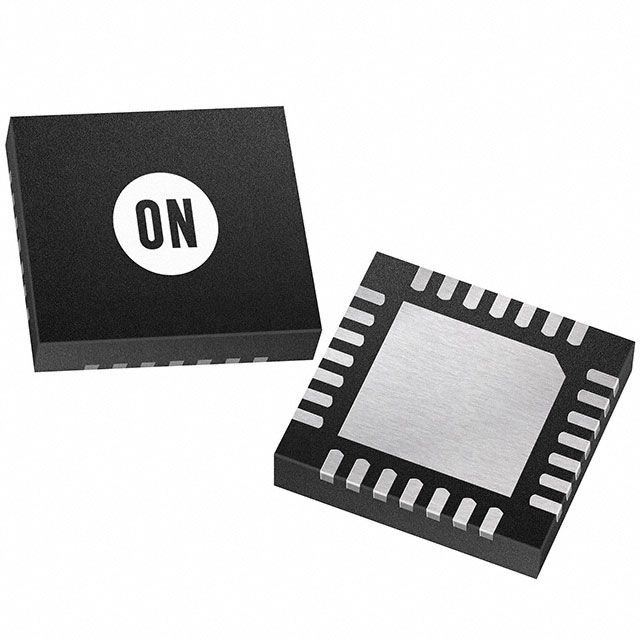

AX8052F131-2-TX30
RF Transceiver ICs
- Manufacturer No:
- AX8052F131-2-TX30
- Manufacture:
- ON Semiconductor
- Package:
- 40-VFQFN Exposed Pad
- Datasheet:
- AX8052F131-2-TX30
- Description:
- IC RF TXRX+MCU 802.15.4 40VFQFN
In Stock
0 pcs On sales
$0
Product Parameter
- Part Status
- Obsolete
- Supplier Device Package
- 40-QFN (7x5)
- Sensitivity
- -
- Mounting Type
- Surface Mount
- Package / Case
- 40-VFQFN Exposed Pad
- GPIO
- 21
- Power - Output
- 16dBm
- Type
- TxRx + MCU
- Data Rate (Max)
- 2Mbps
- Series
- -
- Voltage - Supply
- 2.2V ~ 3.6V
- Protocol
- Zigbee®
- Serial Interfaces
- SPI, UART
- Frequency
- 400MHz ~ 470MHz, 800MHz ~ 940MHz
- RF Family/Standard
- 802.15.4, General ISM < 1GHz
- Packaging
- Tape & Reel (TR)
- Current - Receiving
- -
- Modulation
- 4FSK, ASK, FSK, GFSK, MSK, O-QPSK, PSK
- Operating Temperature
- -40°C ~ 85°C
- Memory Size
- 64kB Flash, 8.25kB SRAM
- Current - Transmitting
- 13mA ~ 45mA
