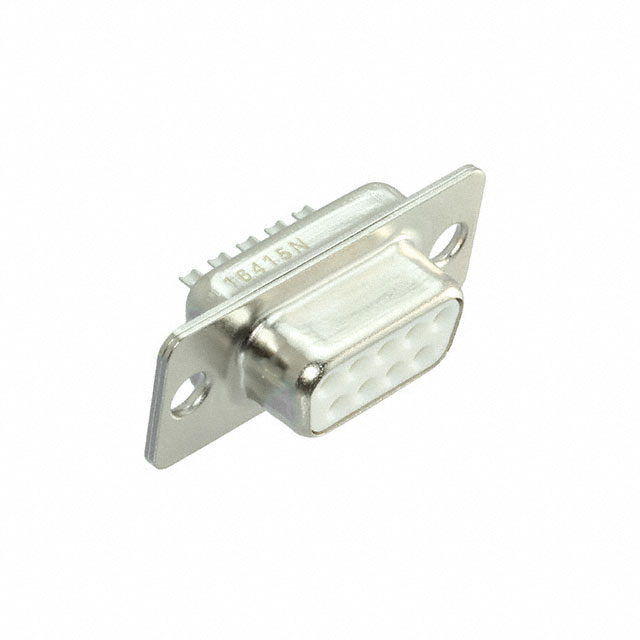

XM3D-2521
D-Sub Connectors
- Manufacturer No:
- XM3D-2521
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- XM3D-2521
- Description:
- CONN D-SUB RCPT 25P SLDR CUP
In Stock
0 pcs On sales
$13.85
Product Parameter
- Contact Form
- -
- Dielectric Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Type
- Signal
- Number of Positions
- 25
- Mounting Type
- Free Hanging (In-Line)
- Current Rating (Amps)
- 5A
- Connector Type
- Receptacle, Female Sockets
- Operating Temperature
- -55°C ~ 105°C
- Contact Finish
- Gold
- Shell Material, Finish
- Steel, Nickel Plated
- Color
- White
- Flange Feature
- Housing/Shell (Unthreaded)
- Contact Finish Thickness
- 16.0µin (0.41µm)
- Series
- XM3D
- Number of Rows
- 2
- Material Flammability Rating
- UL94 V-0
- Features
- Shielded
- Voltage Rating
- 300V
- Shell Size, Connector Layout
- 3 (DB, B)
- Packaging
- Tray
- Backset Spacing
- -
- Wire Gauge
- 22-28 AWG
- Connector Style
- D-Sub
- Part Status
- Active
- Contact Material
- Phosphor Bronze
- Termination
- Solder Cup
- Ingress Protection
- -
