XF3A-1255-41A
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- XF3A-1255-41A
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- XF3A-1255-41A
- Description:
- CONN FPC TOP 12POS 0.30MM R/A
In Stock
1455 pcs On sales
$0
Product Parameter
- Termination
- Solder
- FFC, FCB Thickness
- 0.12mm
- Housing Color
- Natural
- Height Above Board
- 0.023" (0.59mm)
- Mating Cycles
- 10
- Dielectric Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 12
- Actuator Color
- Black
- Current Rating (Amps)
- 0.2A
- Cable End Type
- Tapered
- Operating Temperature
- -30°C ~ 85°C
- Contact Finish
- Gold
- Connector/Contact Type
- Contacts, Top
- Pitch
- 0.012" (0.30mm)
- Flat Flex Type
- FPC
- Contact Finish Thickness
- 5.90µin (0.150µm)
- Series
- XF3A
- Voltage Rating
- 50V
- Material Flammability Rating
- UL94 V-0
- Features
- -
- Locking Feature
- Rotary Lock, Backlock
- Packaging
- Digi-Reel®
- Contact Material
- Copper Alloy
- Part Status
- Obsolete
- Actuator Material
- Liquid Crystal Polymer (LCP), Halogen Free
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
XF3A-1255-41A Relevant information

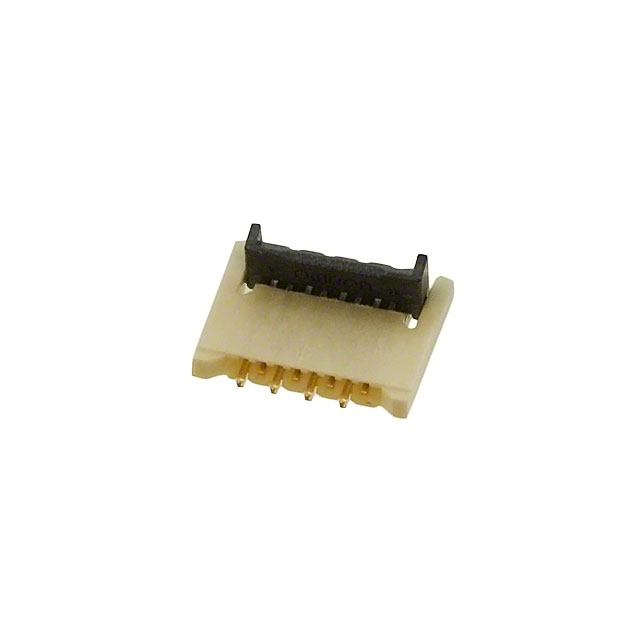

XF3A-0855-41A
CONN FPC TOP 8POS 0.30MM R/A
XF3A-1255-41A
CONN FPC TOP 12POS 0.30MM R/A

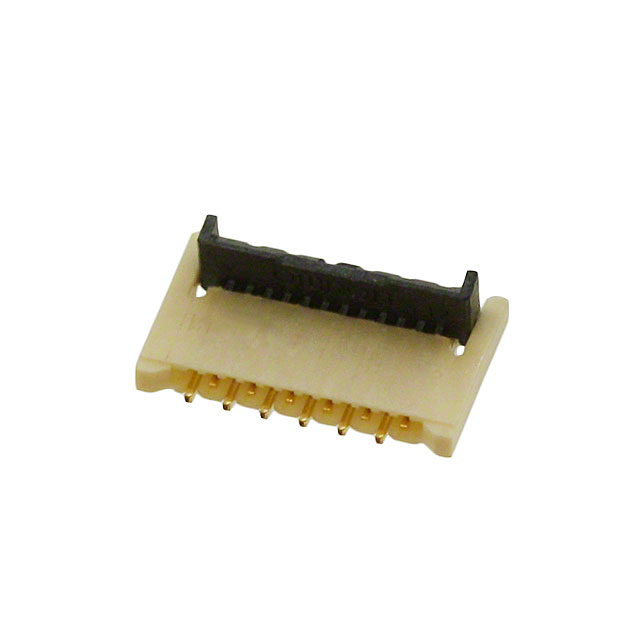

XF3A-1755-41A
CONN FPC TOP 17POS 0.30MM R/A
XF3A-2355-41A
CONN FPC TOP 23POS 0.30MM R/A
XF3A-2555-41A
CONN FPC TOP 25POS 0.30MM R/A

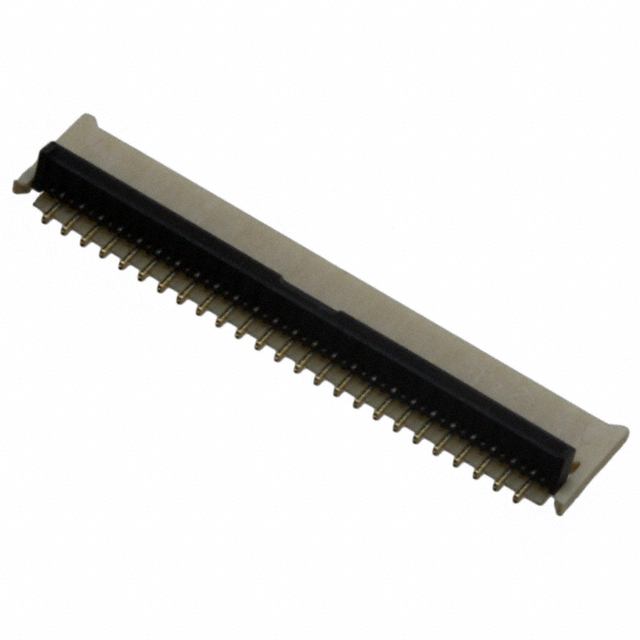

XF3A-515541A
