XF2N-3215-3
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- XF2N-3215-3
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- XF2N-3215-3
- Description:
- CONN FPC 32POS 0.50MM R/A
In Stock
0 pcs On sales
$0
Product Parameter
- Termination
- Solder
- FFC, FCB Thickness
- 0.20mm
- Housing Color
- Natural
- Height Above Board
- -
- Mating Cycles
- 20
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 32
- Actuator Color
- Black
- Current Rating (Amps)
- 0.3A
- Cable End Type
- Straight
- Operating Temperature
- -30°C ~ 85°C
- Contact Finish
- Gold
- Connector/Contact Type
- Contacts, Top and Bottom
- Pitch
- 0.020" (0.50mm)
- Flat Flex Type
- FPC
- Contact Finish Thickness
- 5.90µin (0.150µm)
- Series
- XF2N
- Voltage Rating
- 50V
- Material Flammability Rating
- UL94 V-0
- Features
- Solder Retention
- Locking Feature
- Rotary Lock, Backlock
- Packaging
- Bulk
- Contact Material
- Copper Alloy
- Part Status
- Obsolete
- Actuator Material
- Liquid Crystal Polymer (LCP)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
XF2N-3215-3 Relevant information
XF2N-3215-3
CONN FPC 32POS 0.50MM R/A

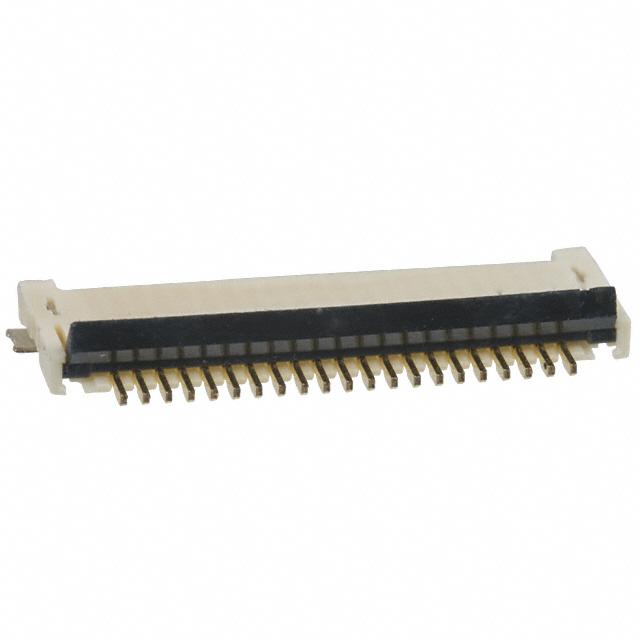

XF2N21153
