XF2M-1215-1A
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- XF2M-1215-1A
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- XF2M-1215-1A
- Description:
- CONN FPC 12POS 0.50MM R/A
In Stock
20958 pcs On sales
$0
Product Parameter
- Actuator Color
- Black
- Current Rating (Amps)
- 0.5A
- Cable End Type
- Tapered
- Operating Temperature
- -30°C ~ 85°C
- Contact Finish
- Gold
- Connector/Contact Type
- Contacts, Top and Bottom
- Pitch
- 0.020" (0.50mm)
- Flat Flex Type
- FPC
- Contact Finish Thickness
- 5.90µin (0.150µm)
- Series
- XF2M
- Voltage Rating
- 50V
- Material Flammability Rating
- UL94 V-0
- Features
- -
- Locking Feature
- Rotary Lock, Backlock
- Packaging
- Digi-Reel®
- Contact Material
- Copper Alloy
- Part Status
- Active
- Actuator Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Termination
- Solder
- FFC, FCB Thickness
- 0.30mm
- Housing Color
- Natural
- Height Above Board
- 0.083" (2.10mm)
- Mating Cycles
- 20
- Dielectric Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 12
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
XF2M-1215-1A Relevant information

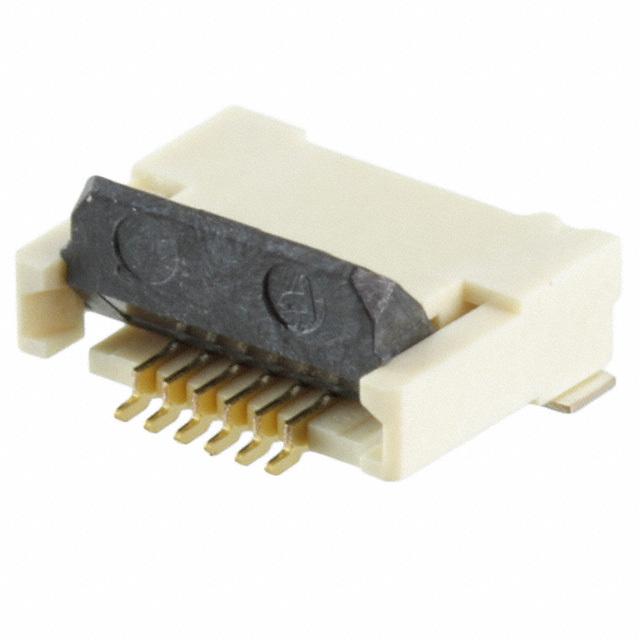

XF2M-0615-1A
CONN FPC 6POS 0.50MM R/A

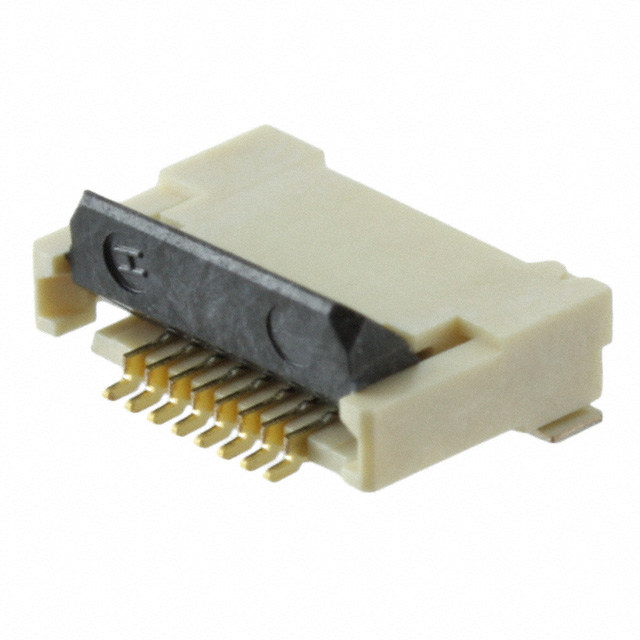

XF2M-0815-1A
CONN FPC 8POS 0.50MM R/A

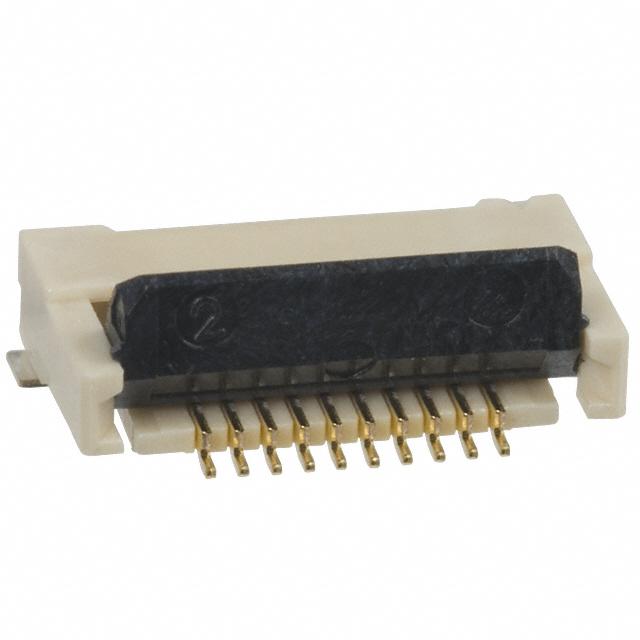

XF2M-1015-1A
CONN FPC 10POS 0.50MM R/A

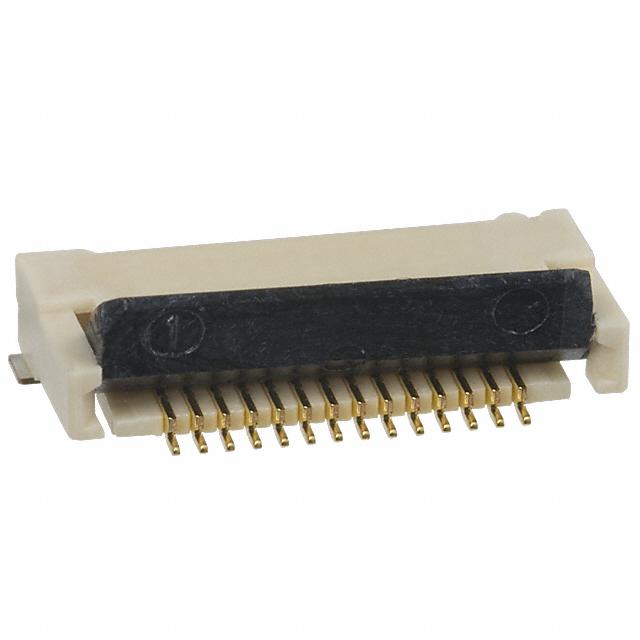

XF2M-1015-1A-R100
CONN FPC 10POS 0.50MM R/A
XF2M-1215-1A
CONN FPC 12POS 0.50MM R/A

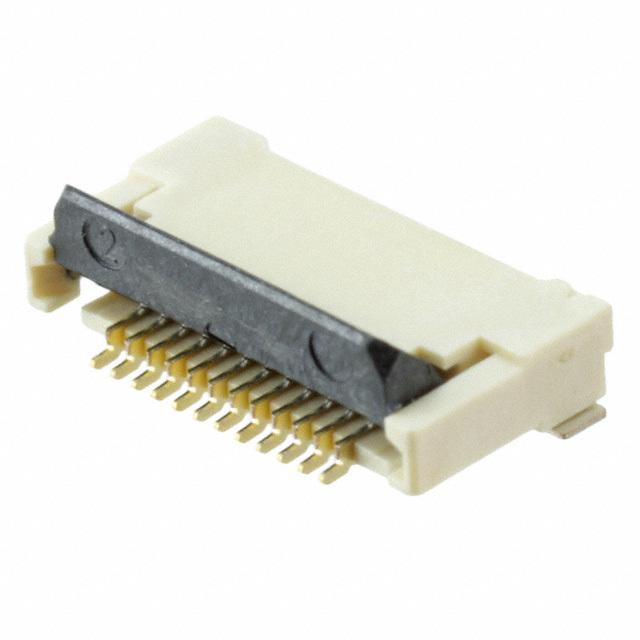

XF2M-1215-1A-R100
