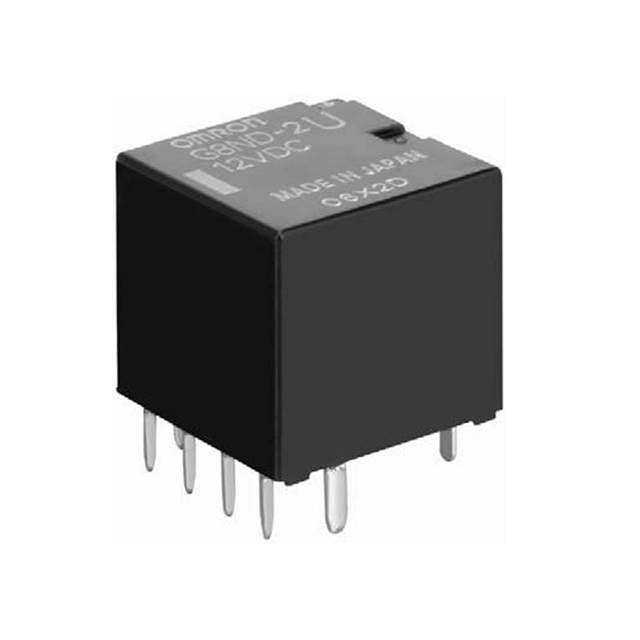

G8ND-2S-DC12
Automotive Relays
- Manufacturer No:
- G8ND-2S-DC12
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- G8ND-2S-DC12
- Description:
- RELAY AUTOMOTIVE SPDT 30A 12V
In Stock
1500 pcs On sales
$3.83
Product Parameter
- Packaging
- Tube
- Termination Style
- PC Pin
- Coil Power
- 800mW
- Must Operate Voltage
- 6.5 VDC
- Part Status
- Active
- Must Release Voltage
- 1 VDC
- Coil Current
- 66.7mA
- Operating Temperature
- -40°C ~ 85°C
- Coil Voltage
- 12VDC
- Contact Rating (Current)
- 30A
- Contact Form
- SPDT (1 Form C) x 2
- Operate Time
- 10ms
- Release Time
- 10ms
- Mounting Type
- Through Hole
- Series
- G8ND-2
- Coil Resistance
- 180 Ohms
- Features
- -
- Contact Material
- Silver Tin Oxide (AgSnO)
- Coil Type
- Non Latching
- Switching Voltage
- 16VDC - Max
