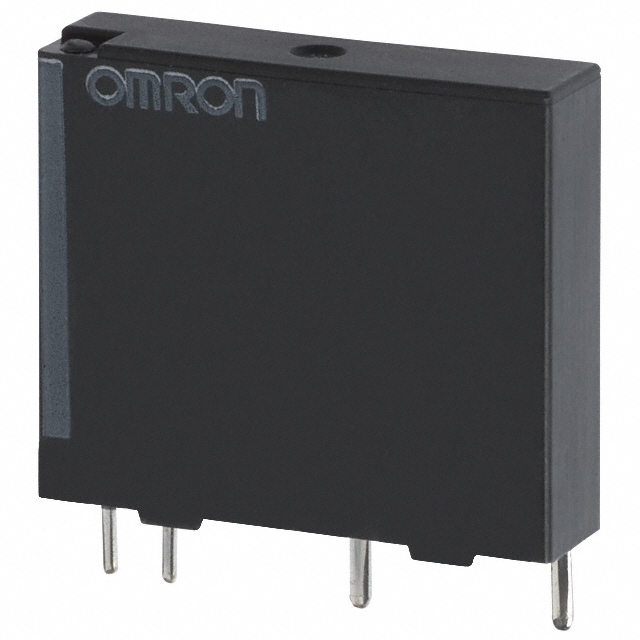

G6M-1A DC24
Power Relays, Over 2 Amps
- Manufacturer No:
- G6M-1A DC24
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- G6M-1A DC24
- Description:
- RELAY GEN PURPOSE SPST 3A 24V
In Stock
12 pcs On sales
$9.66
Product Parameter
- Coil Current
- 5.0mA
- Must Release Voltage
- 2.4 VDC
- Coil Voltage
- 24VDC
- Operating Temperature
- -40°C ~ 85°C
- Contact Form
- SPST-NO (1 Form A)
- Contact Rating (Current)
- 3A
- Operate Time
- 10ms
- Release Time
- 5ms
- Series
- G6M
- Mounting Type
- Through Hole
- Features
- -
- Coil Insulation
- -
- Coil Type
- Non Latching
- Coil Resistance
- 4.8 kOhms
- Packaging
- Bulk
- Contact Material
- -
- Relay Type
- General Purpose
- Switching Voltage
- 270VAC, 125VDC - Max
- Part Status
- Obsolete
- Termination Style
- PC Pin
- Seal Rating
- Sealed - Fully
- Must Operate Voltage
- 16.8 VDC
