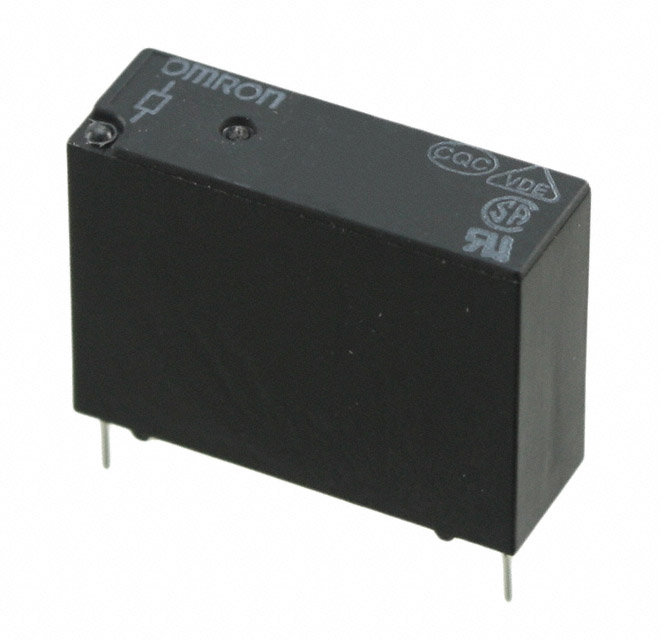

G5T-1A DC12
Power Relays, Over 2 Amps
- Manufacturer No:
- G5T-1A DC12
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- G5T-1A DC12
- Description:
- RELAY GEN PURPOSE SPST 5A 12V
In Stock
0 pcs On sales
$0
Product Parameter
- Series
- G5T
- Mounting Type
- Through Hole
- Features
- -
- Coil Insulation
- -
- Coil Type
- Non Latching
- Coil Resistance
- 720 Ohms
- Packaging
- Bulk
- Contact Material
- -
- Relay Type
- General Purpose
- Switching Voltage
- 250VAC, 30VDC - Max
- Part Status
- Obsolete
- Termination Style
- PC Pin
- Seal Rating
- Sealed - Flux Protection
- Must Operate Voltage
- 9 VDC
- Coil Current
- 16.7mA
- Must Release Voltage
- 0.6 VDC
- Coil Voltage
- 12VDC
- Operating Temperature
- -40°C ~ 70°C
- Contact Form
- SPST-NO (1 Form A)
- Contact Rating (Current)
- 5A
- Operate Time
- 10ms
- Release Time
- 10ms
