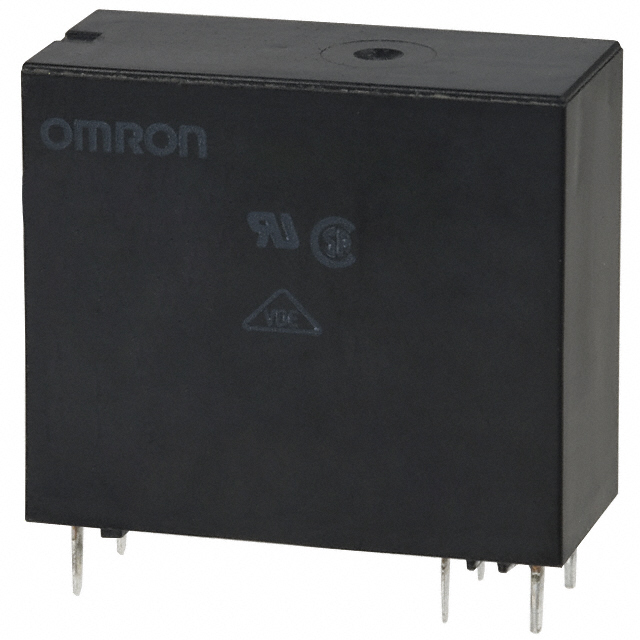

G2RG-2A4 DC5
Power Relays, Over 2 Amps
- Manufacturer No:
- G2RG-2A4 DC5
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- G2RG-2A4 DC5
- Description:
- RELAY GENERAL PURPOSE DPST 8A 5V
In Stock
100 pcs On sales
$7.24
Product Parameter
- Seal Rating
- Sealed - Fully
- Must Operate Voltage
- 4 VDC
- Coil Current
- 160mA
- Must Release Voltage
- 0.5 VDC
- Coil Voltage
- 5VDC
- Operating Temperature
- -40°C ~ 70°C
- Contact Form
- DPST-NO (2 Form A)
- Contact Rating (Current)
- 8A
- Operate Time
- 15ms
- Release Time
- 5ms
- Series
- G2RG
- Mounting Type
- Through Hole
- Features
- -
- Coil Insulation
- -
- Coil Type
- Non Latching
- Coil Resistance
- 31.3 Ohms
- Packaging
- Tray
- Contact Material
- Silver Tin Oxide (AgSnO)
- Relay Type
- General Purpose
- Switching Voltage
- 380VAC, 125VDC - Max
- Part Status
- Active
- Termination Style
- PC Pin
