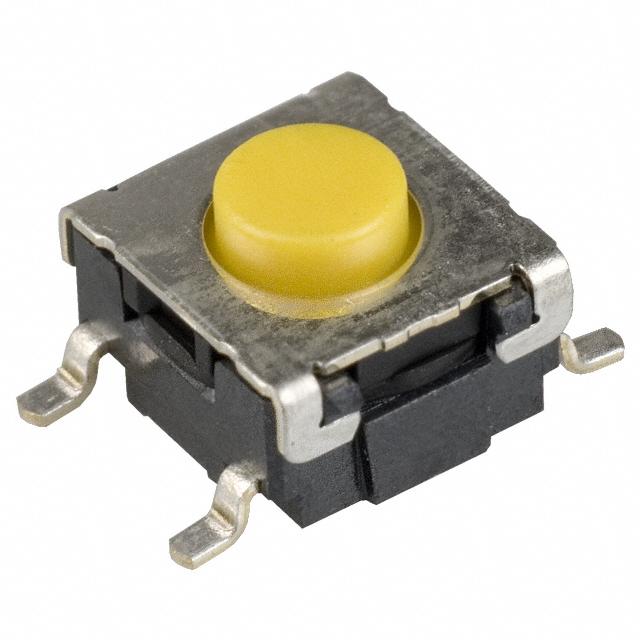

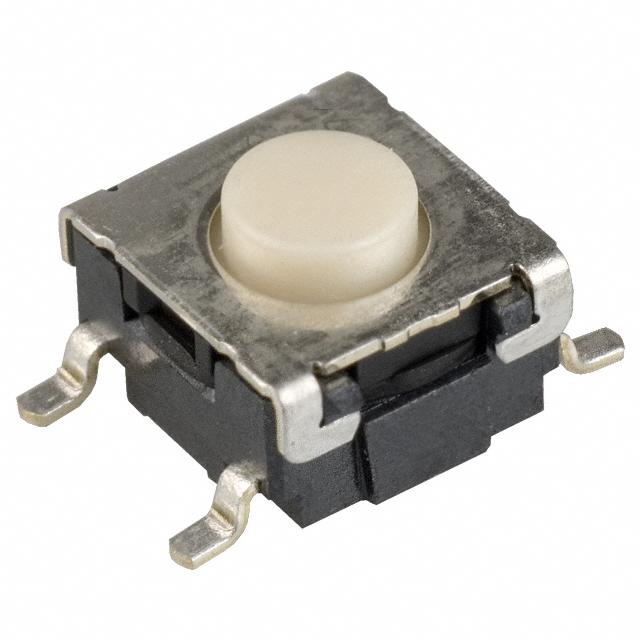

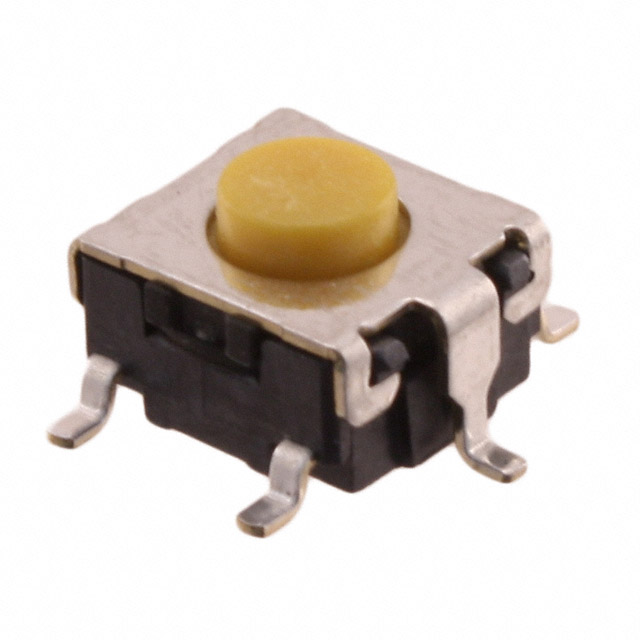

B3S-1102
Tactile Switches
- Manufacturer No:
- B3S-1102
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- B3S-1102
- Description:
- SWITCH TACTILE SPST-NO 0.05A 24V
In Stock
3648 pcs On sales
$0.72
Product Parameter
- Part Status
- Active
- Operating Temperature
- -25°C ~ 70°C
- Illumination
- Non-Illuminated
- Contact Rating @ Voltage
- 0.05A @ 24VDC
- Actuator Type
- Standard
- Illumination Type, Color
- -
- Mounting Type
- Surface Mount
- Actuator Length, Right Angle
- -
- Switch Travel
- 0.25mm
- Illumination Voltage (Nominal)
- -
- Mechanical Life
- 300,000 Cycles
- Actuator Height off PCB, Vertical
- 4.30mm
- Operating Force
- 230gf
- Series
- B3S
- Switch Function
- Off-Mom
- Circuit
- SPST-NO
- Actuator Material
- -
- Outline
- 6.60mm x 6.00mm
- Termination Style
- Gull Wing
- Features
- Grounding Pin, Sealed - Fully
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Packaging
- Bulk
- Actuator Orientation
- Top Actuated
