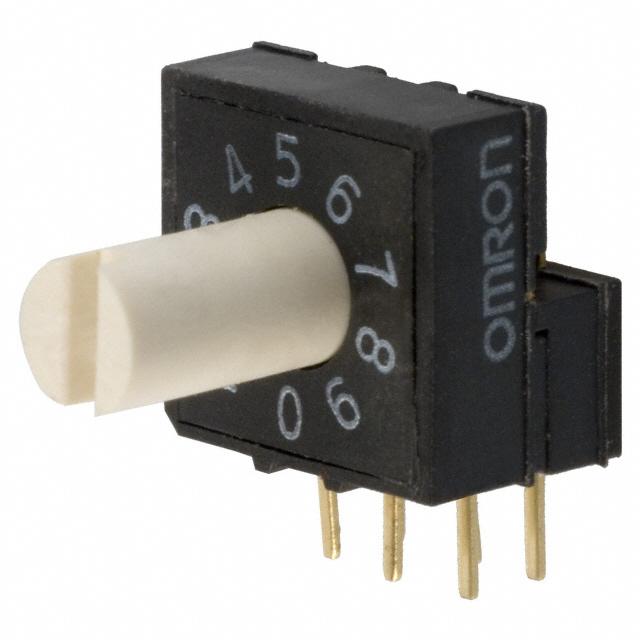

A6RV-102RF
DIP Switches
- Manufacturer No:
- A6RV-102RF
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- A6RV-102RF
- Description:
- SWITCH ROTARY DIP BCD 25MA 24V
In Stock
2059 pcs On sales
$4
Product Parameter
- Actuator Level
- Flush, Recessed
- Pitch
- 0.100" (2.54mm), Full
- Contact Finish
- -
- Length
- 0.386" (9.80mm)
- Voltage Rating
- 24VDC
- Series
- A6RV
- Electrical Life
- 5,000 Steps
- Circuit
- BCD
- Mechanical Life
- -
- Features
- Sealed
- Contact Material
- -
- Washable
- No
- Termination Style
- PC Pin
- Packaging
- Tube
- Height Above Board
- 0.390" (9.90mm)
- Part Status
- Active
- Number of Positions
- 10
- Actuator Type
- Rotary for Tool
- Current Rating (Amps)
- 25mA
- Body Material
- -
- Operating Temperature
- -25°C ~ 80°C
- Mounting Type
- Through Hole, Right Angle
