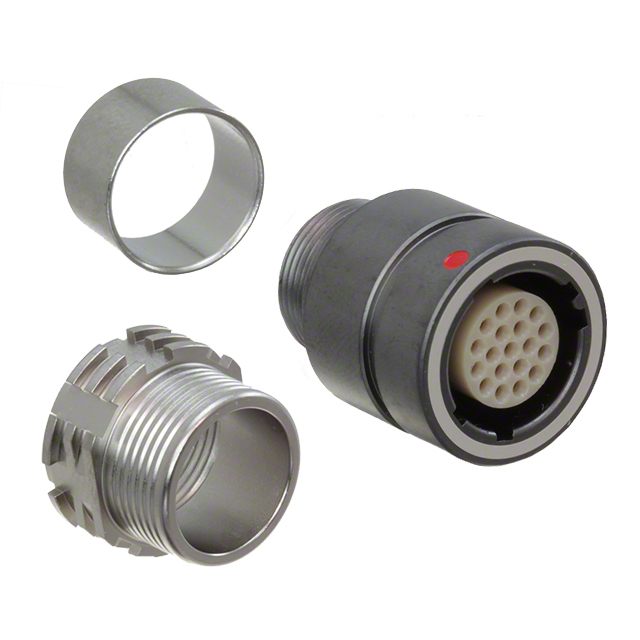

K12YAR-P26WCD0-0000
Circular Connectors
- Manufacturer No:
- K12YAR-P26WCD0-0000
- Manufacture:
- ODU
- Datasheet:
- K12YAR-P26WCD0-0000
- Description:
- CONN RCPT FMALE 26P GOLD SLD CUP
In Stock
22 pcs On sales
$156.21
Product Parameter
- Part Status
- Active
- Contact Material
- Copper Alloy
- Termination
- Solder Cup
- Mounting Feature
- -
- Applications
- Industrial, Medical, Military
- Ingress Protection
- IP68/69K - Dust Tight, Water Resistant, Waterproof
- Shell Finish
- Ruthenium over Electroless Nickel
- Number of Positions
- 26
- Cable Opening
- 0.394" (10.00mm)
- Shell Size - Insert
- 2
- Mounting Type
- Free Hanging (In-Line)
- Current Rating (Amps)
- -
- Color
- Black, Silver
- Connector Type
- Receptacle, Female Sockets
- Operating Temperature
- -51°C ~ 125°C
- Series
- ODU AMC®
- Fastening Type
- Push-Pull
- Contact Finish - Mating
- Gold
- Features
- -
- Shell Material
- Aluminum
- Backshell Material, Plating
- Aluminum, Electroless Nickel
- Packaging
- Bulk
- Voltage Rating
- 300V
- Material Flammability Rating
- UL94 V-0
- Shielding
- Shielded
- Insert Material
- Polyetheretherketone (PEEK)
- Contact Finish Thickness - Mating
- 49.3µin (1.25µm)
- Orientation
- A
- Shell Size, MIL
- -
