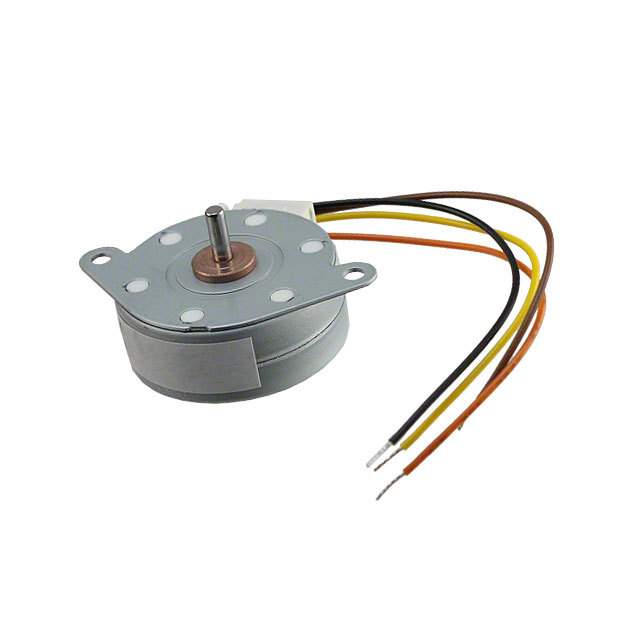

PM35L-048-HHC7
Stepper Motors
- Manufacturer No:
- PM35L-048-HHC7
- Manufacture:
- NMB Technologies Corporation
- Datasheet:
- PM35L-048-HHC7
- Description:
- STEPPER MOTOR PM BIPOLAR 24V
In Stock
17 pcs On sales
$36.61
Product Parameter
- Type
- Permanent Magnet
- Diameter - Shaft
- 0.118" (3.00mm)
- Series
- PM
- Size / Dimension
- Round - 1.378" Dia (35.00mm)
- Weight
- -
- Termination Style
- Wire Leads
- Accuracy
- -
- Steps per Revolution
- 48
- Features
- Round Shaft
- Current Rating (Amps)
- 600mA
- Approvals
- -
- Mounting Hole Spacing
- 1.650" (42.00mm)
- Coil Type
- Bipolar
- Operating Temperature
- -
- Step Angle
- 7.5°
- Length - Shaft and Bearing
- 0.394" (10.00mm)
- Part Status
- Active
- Torque - Holding (oz-in / mNm)
- 6.9 / 49
- Rotor Inertia
- -
- Coil Resistance
- 5.5 Ohms
- Voltage - Rated
- 24VDC
