FBL12G24M1A
DC Brushless Fans (BLDC)
- Manufacturer No:
- FBL12G24M1A
- Manufacture:
- NMB Technologies Corporation
- Datasheet:
- FBL12G24M1A
- Description:
- FAN AXIAL 120X38MM 24VDC WIRE
In Stock
51 pcs On sales
$21.68
Product Parameter
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Hydro-wave (HWB)
- RPM
- 2100 RPM
- Power (Watts)
- 2.98W
- Noise
- 35.5 dB
- Voltage Range
- 14 ~ 27.6VDC
- Width
- 38.00mm
- Static Pressure
- 0.189 in H2O (47.1 Pa)
- Series
- FBL
- Voltage - Rated
- 24VDC
- Weight
- 0.595 lb (269.89 g)
- Lifetime @ Temp.
- 30000 Hrs @ 25°C
- Air Flow
- 86.5 CFM (2.42m³/min)
- Material - Blade
- -
- Fan Type
- Tubeaxial
- Material - Frame
- -
- Features
- -
- Size / Dimension
- Square - 120mm L x 120mm H
- Approvals
- -
- Ingress Protection
- -
- Part Status
- Obsolete
- Current Rating (Amps)
- 0.124A
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
FBL12G24M1A Relevant information

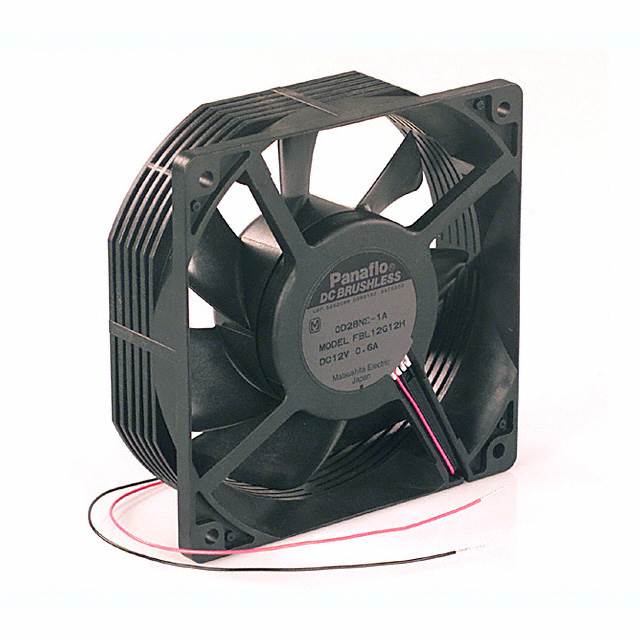

FBL12G12H1A
FAN AXIAL 120X38MM 12VDC WIRE

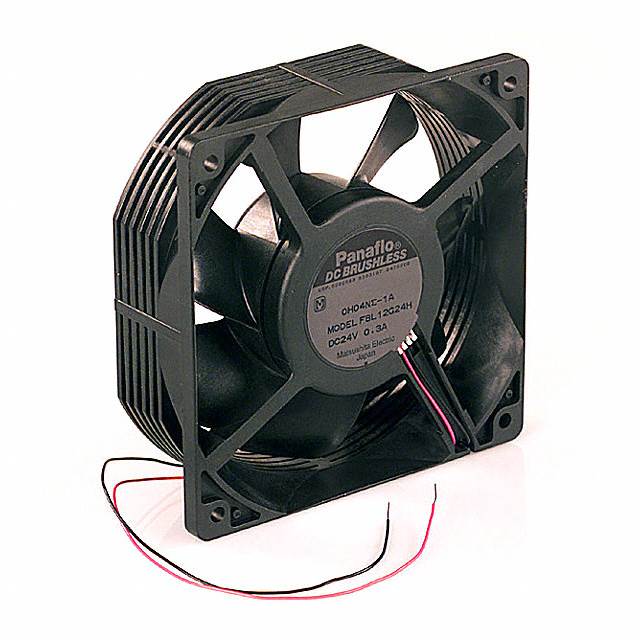

FBL12G24H1A
FAN AXIAL 120X38MM 24VDC WIRE

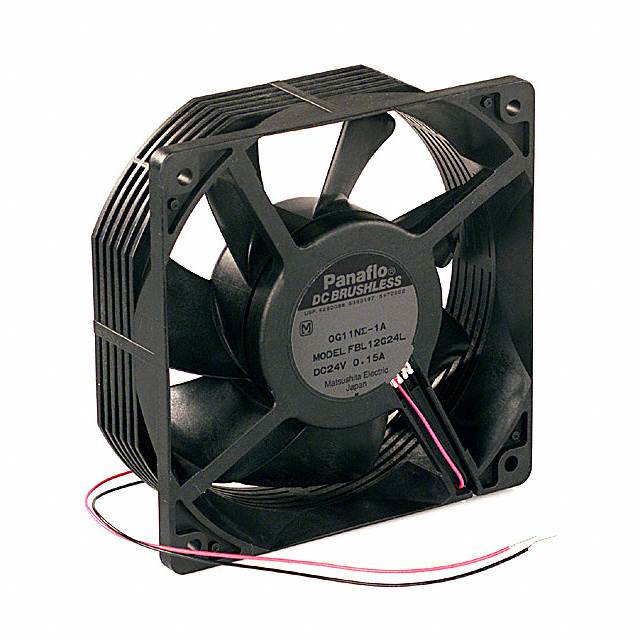

FBL12G24L1A
