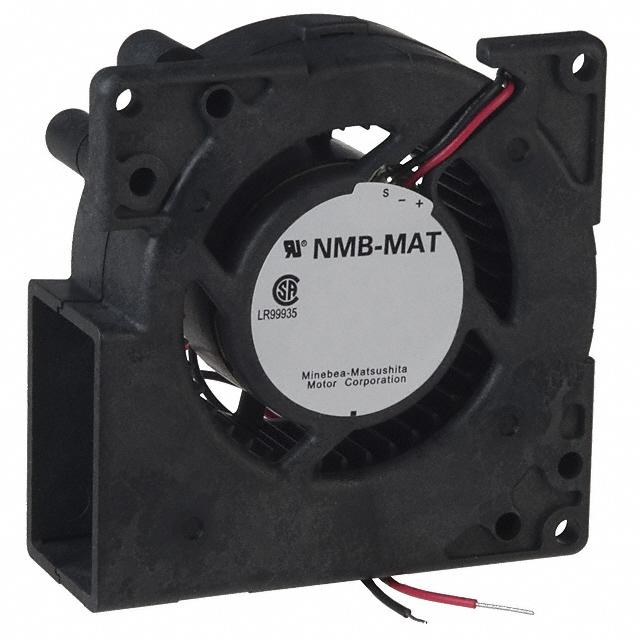

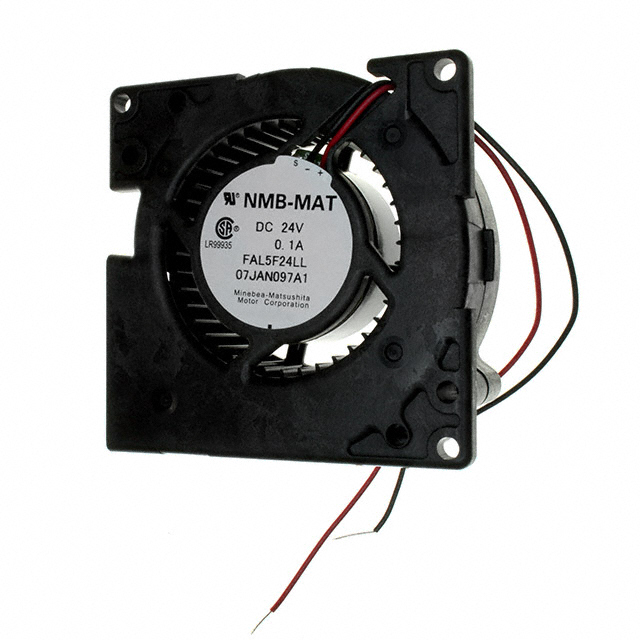

FAL5F24LH
DC Brushless Fans (BLDC)
- Manufacturer No:
- FAL5F24LH
- Manufacture:
- NMB Technologies Corporation
- Datasheet:
- FAL5F24LH
- Description:
- FAN BLOWER 76X28MM 24VDC WIRE
In Stock
0 pcs On sales
$0
Product Parameter
- Width
- 28.00mm
- Static Pressure
- 0.382 in H2O (95.1 Pa)
- Series
- FAL-5F
- Voltage - Rated
- 24VDC
- Weight
- 0.22 lb (99.79 g)
- Lifetime @ Temp.
- 40000 Hrs @ 25°C
- Air Flow
- 10.6 CFM (0.297m³/min)
- Material - Blade
- -
- Fan Type
- Blower
- Material - Frame
- -
- Features
- -
- Size / Dimension
- Square/Rounded - 76mm L x 76mm H
- Approvals
- CSA, UL
- Ingress Protection
- -
- Part Status
- Obsolete
- Current Rating (Amps)
- 0.100A
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 140°F (-10 ~ 60°C)
- Bearing Type
- Hydro-wave (HWB)
- RPM
- 2900 RPM
- Power (Watts)
- 2.40W
- Noise
- 36.0 dB
- Voltage Range
- 14 ~ 27.6VDC
