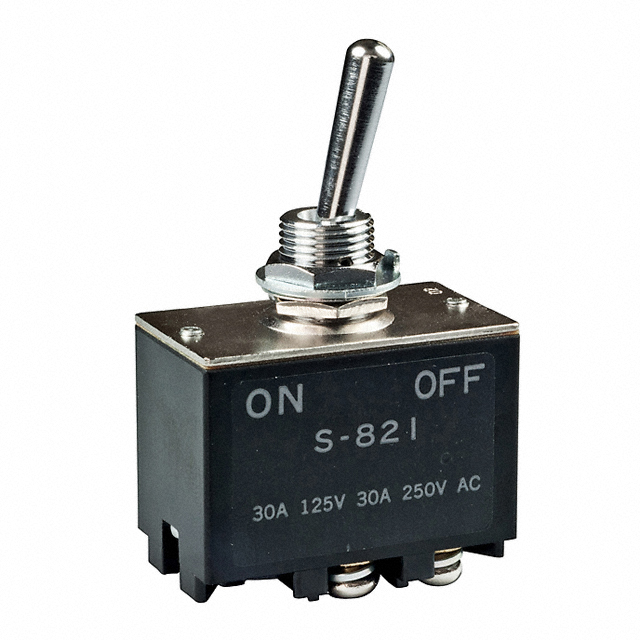

S821/U
Toggle Switches
- Manufacturer No:
- S821/U
- Manufacture:
- NKK Switches
- Datasheet:
- S821/U
- Description:
- SWITCH TOGGLE DPST 30A 125V
In Stock
1322 pcs On sales
$22.35
Product Parameter
- Mounting Type
- Panel Mount
- Panel Cutout Dimensions
- Circular - 12.50mm Dia
- Bushing Thread
- M12 x 1
- Illumination Type, Color
- -
- Actuator Length
- 22.00mm
- Illumination Voltage (Nominal)
- -
- Electrical Life
- 25,000 Cycles
- Switch Function
- On-Off
- Series
- S
- Actuator Material
- Brass, Chrome Plated
- Circuit
- DPST
- Termination Style
- Screw Terminal
- Features
- -
- Ingress Protection
- -
- Packaging
- Tray
- Voltage Rating - AC
- 125V
- Part Status
- Active
- Voltage Rating - DC
- 30V
- Illumination
- Non-Illuminated
- Current Rating (Amps)
- 30A (AC/DC)
- Actuator Type
- Standard Round
- Operating Temperature
- -10°C ~ 70°C
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
S821/U Relevant information
S821/C-UL
SWITCH TOGGLE DPST 30A 125V
S821/U
SWITCH TOGGLE DPST 30A 125V

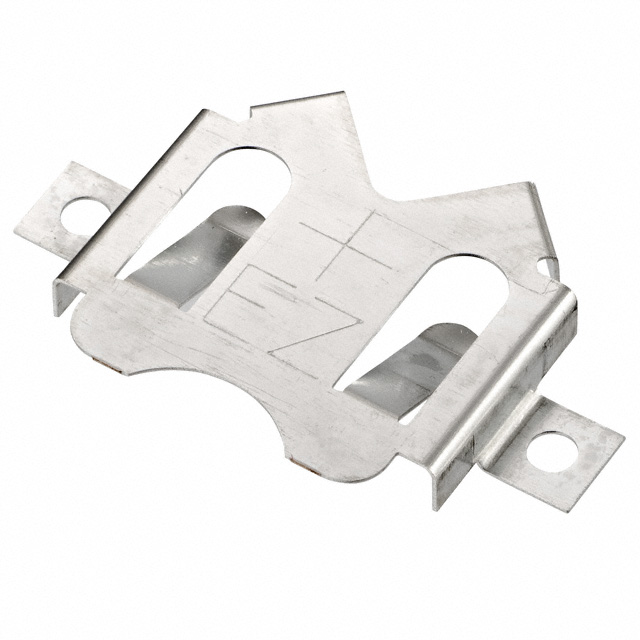

S8211-46R
BATTERY RETAINER COIN 20MM SMD

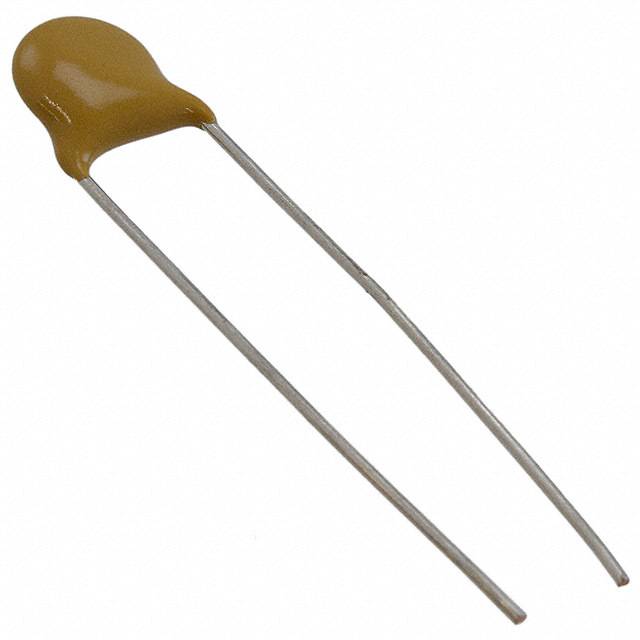

S821K29X7RN63L6R
