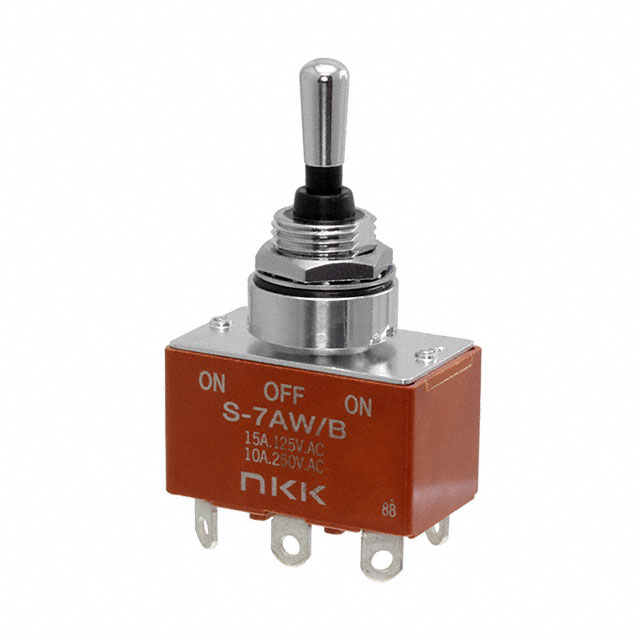

S7AWF
Toggle Switches
- Manufacturer No:
- S7AWF
- Manufacture:
- NKK Switches
- Datasheet:
- S7AWF
- Description:
- SWITCH TOGGLE DPDT 20A 125V
In Stock
46 pcs On sales
$14.67
Product Parameter
- Series
- S
- Actuator Material
- Brass, Chrome Plated
- Circuit
- DPDT
- Termination Style
- Quick Connect - 0.250" (6.3mm)
- Features
- -
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Packaging
- Bulk
- Voltage Rating - AC
- 125V
- Part Status
- Active
- Voltage Rating - DC
- 30V
- Illumination
- Non-Illuminated
- Current Rating (Amps)
- 20A (AC/DC)
- Actuator Type
- Standard Round
- Operating Temperature
- -30°C ~ 70°C
- Mounting Type
- Panel Mount
- Panel Cutout Dimensions
- Circular - 12.50mm Dia
- Bushing Thread
- M12 x 1
- Illumination Type, Color
- -
- Actuator Length
- 17.50mm
- Illumination Voltage (Nominal)
- -
- Electrical Life
- 25,000 Cycles
- Switch Function
- On-Off-On
