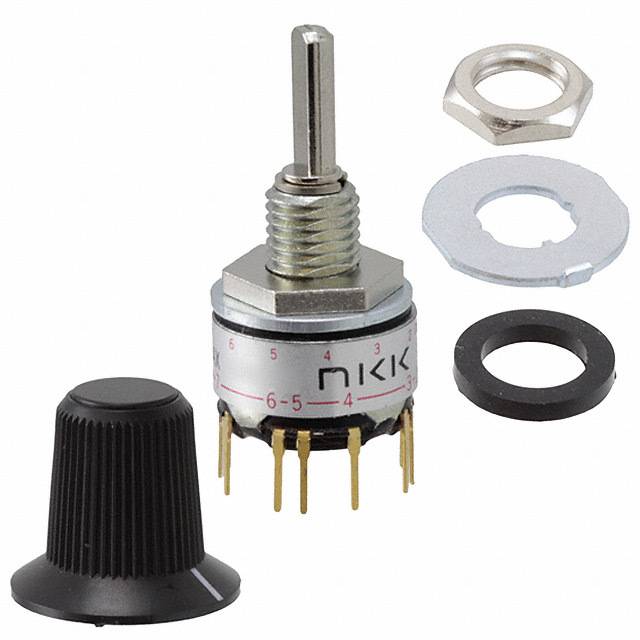

MRK112-A
Rotary Switches
- Manufacturer No:
- MRK112-A
- Manufacture:
- NKK Switches
- Datasheet:
- MRK112-A
- Description:
- SWITCH ROTARY 2-12POS 0.4VA 28V
In Stock
1355 pcs On sales
$12.28
Product Parameter
- Part Status
- Active
- Depth Behind Panel
- 10.10mm
- Actuator Type
- Knob
- Number of Positions
- 2 ~ 12
- Mounting Type
- Panel Mount, Through Hole
- Voltage Rating - AC
- 28V
- Angle of Throw
- 30°
- Voltage Rating - DC
- 28V
- Contact Finish
- Gold
- Current Rating (Amps)
- 0.4VA (AC/DC)
- Contact Timing
- Non-Shorting (BBM)
- Panel Cutout Dimensions
- Circular - 6.35mm Dia
- Actuator Length
- 13.00mm
- Number of Poles per Deck
- 1
- Number of Decks
- 1
- Operating Force
- 0.510 ~ 2.039gfm
- Series
- MR
- Circuit per Deck
- SP12T
- Features
- Process Sealed
- Contact Material
- Phosphor Bronze
- Index Stops
- Adjustable
- Termination Style
- PC Pin
