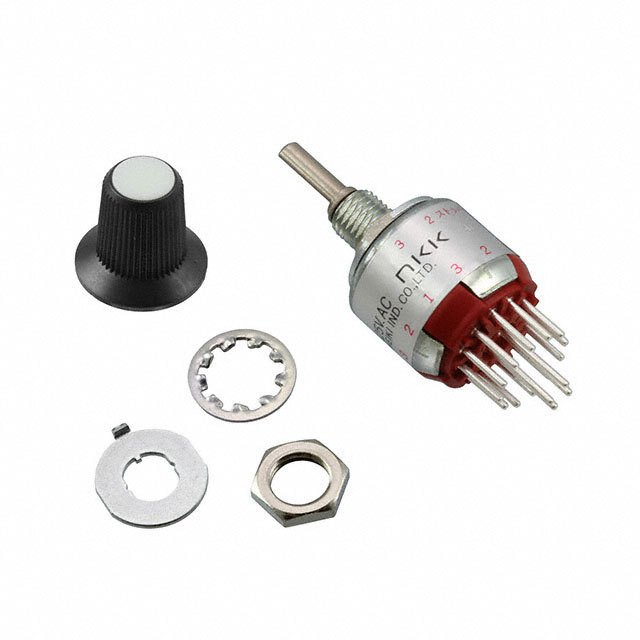

MRA112
Rotary Switches
- Manufacturer No:
- MRA112
- Manufacture:
- NKK Switches
- Datasheet:
- MRA112
- Description:
- SWITCH ROTARY 2-12POS 250MA 125V
In Stock
344 pcs On sales
$12.38
Product Parameter
- Contact Timing
- Non-Shorting (BBM)
- Number of Poles per Deck
- 1
- Actuator Length
- 10.00mm
- Number of Decks
- 1
- Operating Force
- 2.039 ~ 7.138gfm
- Series
- MR
- Circuit per Deck
- SP12T
- Features
- Process Sealed
- Contact Material
- Copper
- Index Stops
- Adjustable
- Termination Style
- PC Pin
- Part Status
- Active
- Depth Behind Panel
- 17.00mm
- Actuator Type
- Flatted (3.17mm Dia)
- Number of Positions
- 2 ~ 12
- Mounting Type
- Panel Mount, Through Hole
- Voltage Rating - AC
- 125V
- Angle of Throw
- 30°
- Current Rating (Amps)
- 250mA (AC)
- Contact Finish
- Silver
- Panel Cutout Dimensions
- Circular - 6.35mm Dia
