JS0408FP4
DIP Switches
- Manufacturer No:
- JS0408FP4
- Manufacture:
- NKK Switches
- Datasheet:
- JS0408FP4
- Description:
- SWITCH SLIDE DIP SPST 25MA 24V
In Stock
34 pcs On sales
$3.98
Product Parameter
- Pitch
- 0.050" (1.27mm), Half
- Contact Finish
- Gold
- Length
- 0.445" (11.30mm)
- Voltage Rating
- 24VDC
- Series
- JS
- Electrical Life
- 2,000 Cycles
- Circuit
- SPST
- Mechanical Life
- 2,000 Cycles
- Features
- -
- Contact Material
- Copper Alloy
- Washable
- No
- Termination Style
- Gull Wing
- Packaging
- Bulk
- Height Above Board
- 0.087" (2.20mm)
- Part Status
- Active
- Number of Positions
- 8
- Actuator Type
- Slide (Standard)
- Current Rating (Amps)
- 25mA
- Body Material
- Polyamide (PA), Nylon, Glass Filled
- Operating Temperature
- -30°C ~ 85°C
- Mounting Type
- Surface Mount
- Actuator Level
- Flush, Recessed
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
JS0408FP4 Relevant information

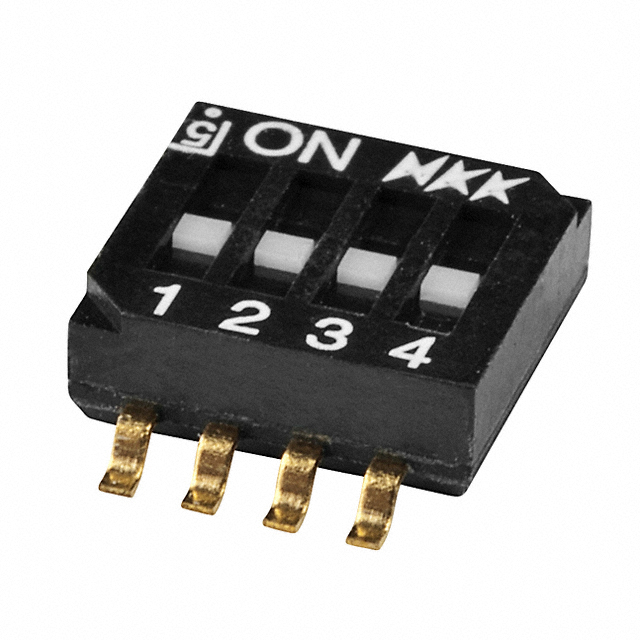

JS0404FP4
