JS0108AP4-S
DIP Switches
- Manufacturer No:
- JS0108AP4-S
- Manufacture:
- NKK Switches
- Datasheet:
- JS0108AP4-S
- Description:
- SWITCH SLIDE DIP SPST 25MA 24V
In Stock
30 pcs On sales
$2.3
Product Parameter
- Length
- 0.837" (21.26mm)
- Voltage Rating
- 24VDC
- Series
- JS
- Electrical Life
- 2,000 Cycles
- Circuit
- SPST
- Mechanical Life
- 2,000 Cycles
- Features
- -
- Contact Material
- Beryllium Copper
- Washable
- No
- Termination Style
- PC Pin
- Packaging
- Bulk
- Height Above Board
- 0.162" (4.11mm)
- Part Status
- Active
- Number of Positions
- 8
- Actuator Type
- Slide (Standard)
- Current Rating (Amps)
- 25mA
- Body Material
- Polyamide (PA), Nylon, Glass Filled
- Operating Temperature
- -25°C ~ 70°C
- Mounting Type
- Through Hole
- Actuator Level
- Raised
- Pitch
- 0.100" (2.54mm), Full
- Contact Finish
- Gold
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
JS0108AP4-S Relevant information
JS0104AP4
SWITCH SLIDE DIP SPST 25MA 24V

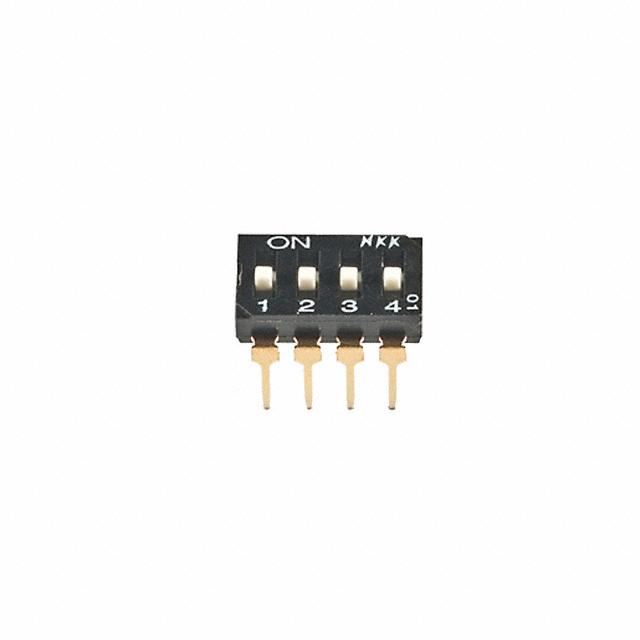

JS0104AP4-S
