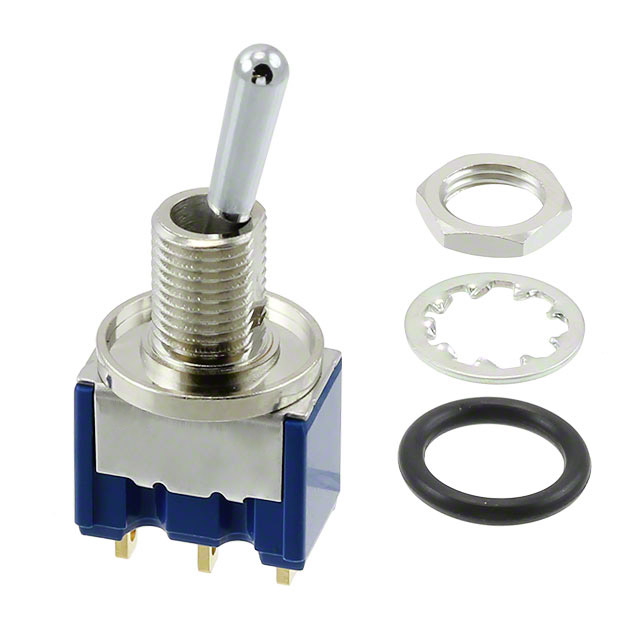

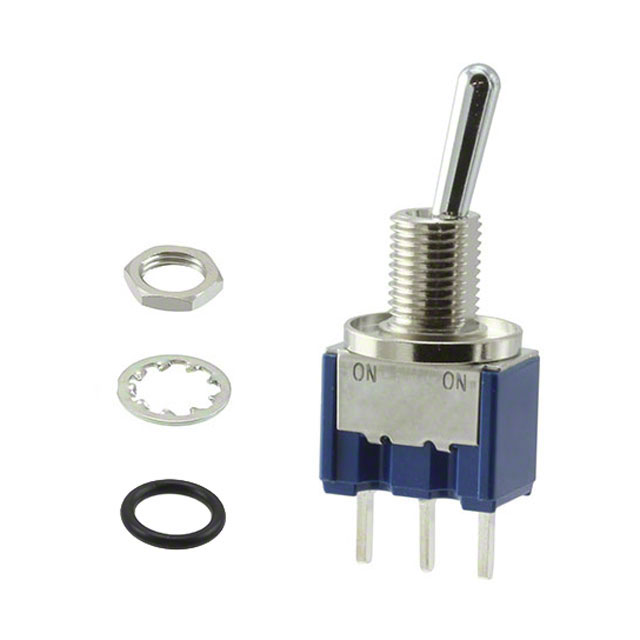

8F1011-Z
Toggle Switches
- Manufacturer No:
- 8F1011-Z
- Manufacture:
- Nidec Copal Electronics
- Datasheet:
- 8F1011-Z
- Description:
- SWITCH TOGGLE SPDT 6A 125V
In Stock
430 pcs On sales
$4.55
Product Parameter
- Illumination
- Non-Illuminated
- Current Rating (Amps)
- 6A (AC), 4A (DC)
- Actuator Type
- Standard Round
- Operating Temperature
- -20°C ~ 85°C
- Mounting Type
- Panel Mount
- Panel Cutout Dimensions
- Circular - 6.50mm Dia
- Bushing Thread
- 1/4-40
- Illumination Type, Color
- -
- Actuator Length
- 10.50mm
- Illumination Voltage (Nominal)
- -
- Electrical Life
- 50,000 Cycles
- Switch Function
- On-On
- Series
- 8F
- Actuator Material
- -
- Circuit
- SPDT
- Termination Style
- Solder Lug
- Features
- -
- Ingress Protection
- Splash Proof
- Packaging
- Bulk
- Voltage Rating - AC
- 125V
- Part Status
- Active
- Voltage Rating - DC
- 30V
