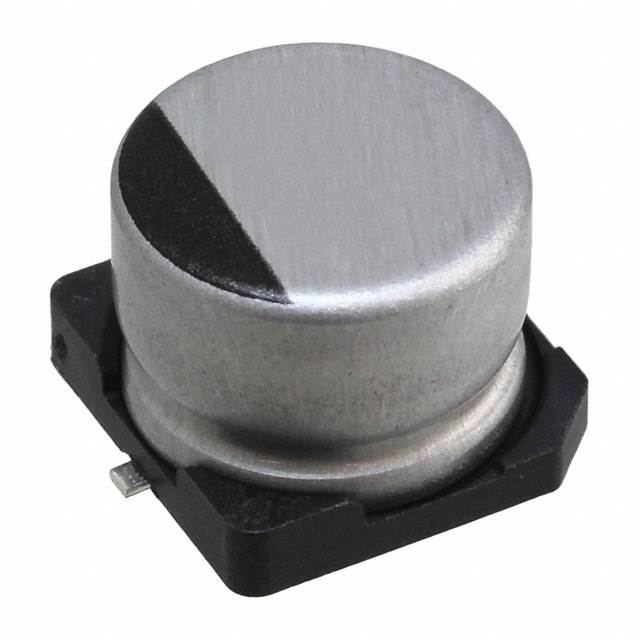

UWF0J220MCL1GB
Aluminum Electrolytic Capacitors
- Manufacturer No:
- UWF0J220MCL1GB
- Manufacture:
- Nichicon
- Package:
- Radial, Can - SMD
- Datasheet:
- UWF0J220MCL1GB
- Description:
- CAP ALUM 22UF 20% 6.3V SMD
In Stock
6000 pcs On sales
$0.09
Product Parameter
- Part Status
- Active
- Ripple Current @ Low Frequency
- 25mA @ 120Hz
- Applications
- General Purpose
- Ripple Current @ High Frequency
- 50mA @ 100kHz
- Lead Spacing
- -
- ESR (Equivalent Series Resistance)
- -
- Polarization
- -
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can - SMD
- Series
- UWF
- Voltage - Rated
- 6.3V
- Ratings
- -
- Lifetime @ Temp.
- 1000 Hrs @ 105°C
- Impedance
- 5 Ohms
- Size / Dimension
- 0.157" Dia (4.00mm)
- Packaging
- Tape & Reel (TR)
- Height - Seated (Max)
- 0.217" (5.50mm)
- Tolerance
- ±20%
- Operating Temperature
- -55°C ~ 105°C
- Capacitance
- 22µF
- Surface Mount Land Size
- 0.169" L x 0.169" W (4.30mm x 4.30mm)
