UCPW6151MHD
Aluminum Electrolytic Capacitors
- Manufacturer No:
- UCPW6151MHD
- Manufacture:
- Nichicon
- Package:
- Radial, Can
- Datasheet:
- UCPW6151MHD
- Description:
- CAP ALUM 150UF 20% 420V RADIAL
In Stock
9849 pcs On sales
$4.3
Product Parameter
- Lead Spacing
- 0.295" (7.50mm)
- ESR (Equivalent Series Resistance)
- -
- Polarization
- Polar
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Voltage - Rated
- 420V
- Series
- UCP
- Lifetime @ Temp.
- 10000 Hrs @ 105°C
- Ratings
- -
- Size / Dimension
- 0.709" Dia (18.00mm)
- Packaging
- Bulk
- Height - Seated (Max)
- 1.476" (37.50mm)
- Tolerance
- ±20%
- Operating Temperature
- -25°C ~ 105°C
- Capacitance
- 150µF
- Surface Mount Land Size
- -
- Part Status
- Active
- Ripple Current @ Low Frequency
- 920mA @ 120Hz
- Applications
- General Purpose
- Ripple Current @ High Frequency
- 1.38A @ 100kHz
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
UCPW6151MHD Relevant information

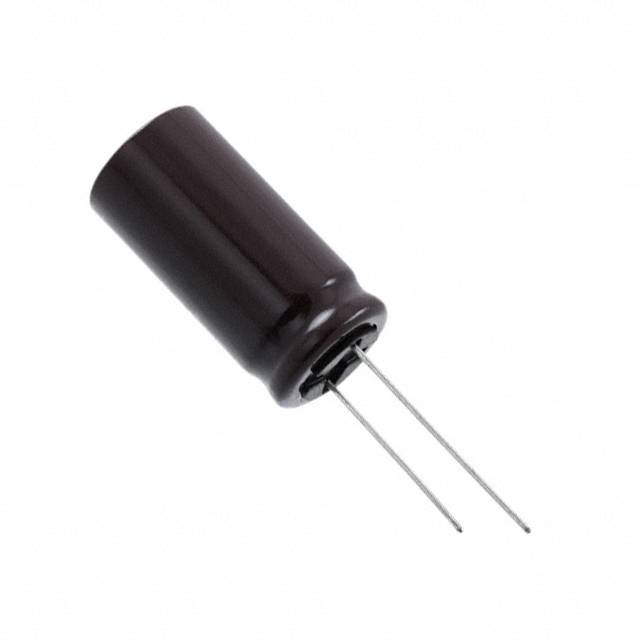

UCPW6101MHD
CAP ALUM 100UF 20% 420V RADIAL

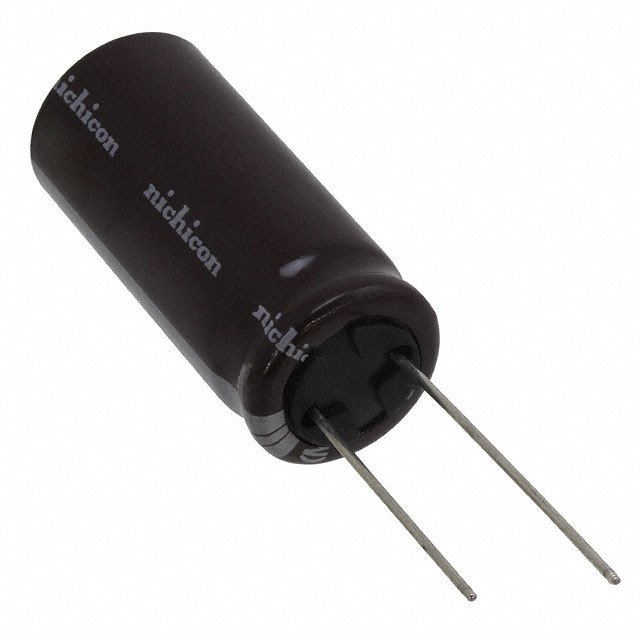

UCPW6121MHD
CAP ALUM 120UF 20% 420V RADIAL
UCPW6121MHD6
CAP ALUM 120UF 20% 420V RADIAL
UCPW6151MHD
CAP ALUM 150UF 20% 420V RADIAL

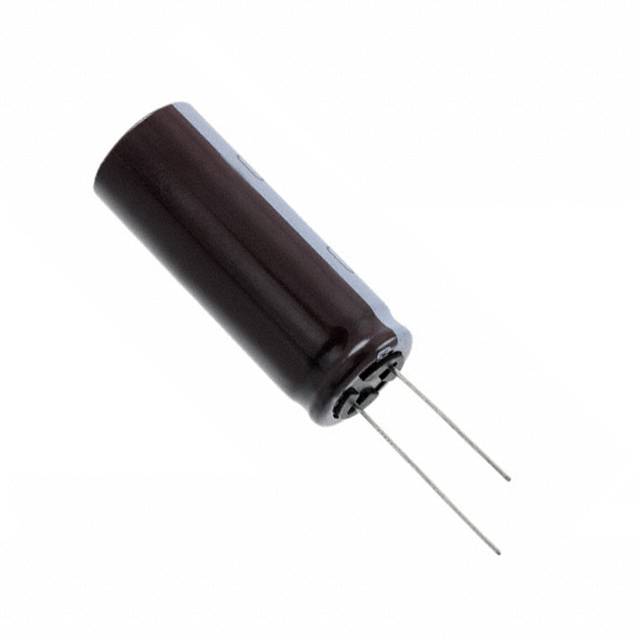

UCPW6181MHD
