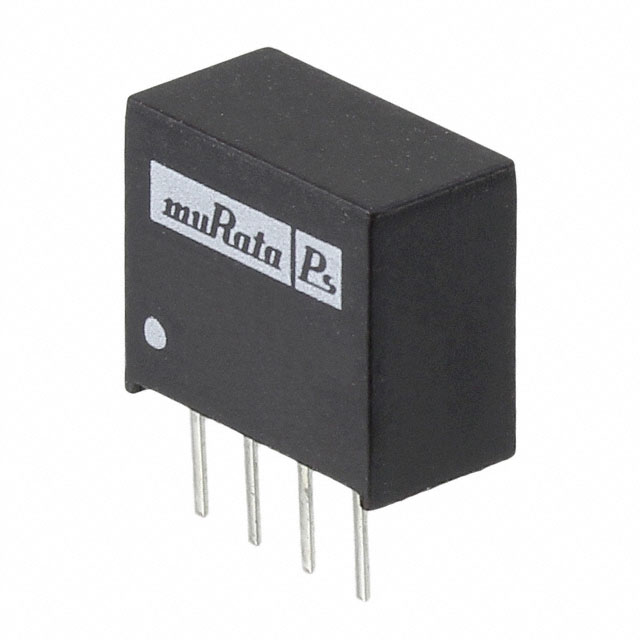

CME0505DC
DC DC Converters
- Manufacturer No:
- CME0505DC
- Manufacture:
- Murata Power Solutions Inc.
- Package:
- 8-DIP Module, 4 Leads
- Datasheet:
- CME0505DC
- Description:
- DC DC CONVERTER 5V 750MW
In Stock
0 pcs On sales
$3.81
Product Parameter
- Size / Dimension
- 0.45" L x 0.39" W x 0.27" H (11.5mm x 9.8mm x 6.8mm)
- Type
- Isolated Module
- Number of Outputs
- 1
- Series
- CME (0.75W)
- Voltage - Output 1
- 5V
- Features
- -
- Voltage - Output 2
- -
- Packaging
- Tube
- Voltage - Output 3
- -
- Efficiency
- 70%
- Voltage - Isolation
- 1kV
- Part Status
- Active
- Operating Temperature
- -40°C ~ 85°C
- Applications
- ITE (Commercial)
- Voltage - Input (Max)
- 5.5V
- Mounting Type
- Through Hole
- Voltage - Input (Min)
- 4.5V
- Power (Watts)
- 750mW
- Current - Output (Max)
- 150mA
- Package / Case
- 8-DIP Module, 4 Leads
- Control Features
- -
