41220C
Fixed Inductors
- Manufacturer No:
- 41220C
- Manufacture:
- Murata Power Solutions Inc.
- Package:
- Nonstandard
- Datasheet:
- 41220C
- Description:
- FIXED IND 22UH 3.3A 33 MOHM
In Stock
25 pcs On sales
$1.95
Product Parameter
- Series
- 4100
- DC Resistance (DCR)
- 33mOhm Max
- Ratings
- -
- Current - Saturation
- -
- Q @ Freq
- -
- Current Rating (Amps)
- 3.3A
- Packaging
- Tube
- Height - Seated (Max)
- 0.390" (9.90mm)
- Shielding
- Unshielded
- Operating Temperature
- -40°C ~ 85°C
- Tolerance
- -
- Supplier Device Package
- -
- Inductance
- 22µH
- Frequency - Self Resonant
- -
- Part Status
- Not For New Designs
- Inductance Frequency - Test
- 10kHz
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- -
- Type
- Toroidal
- Size / Dimension
- 0.690" L x 0.660" W (17.53mm x 16.76mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
41220C Relevant information
4122

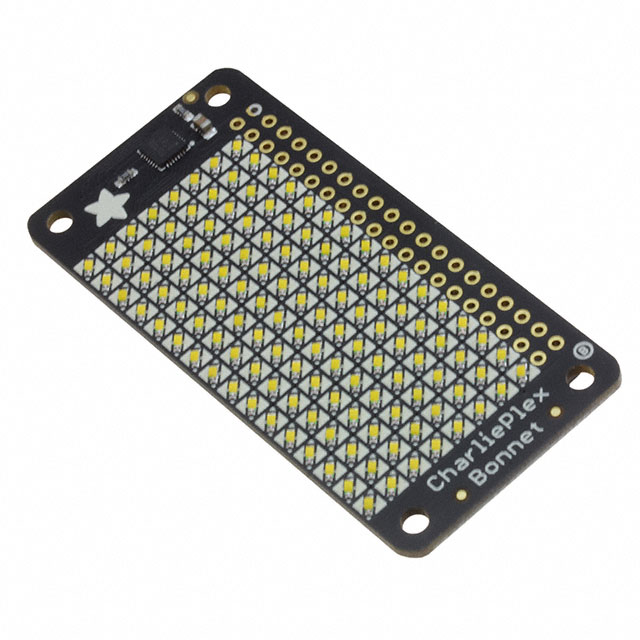

8X16 CHARLIEPLEX LED WARM WHITE
