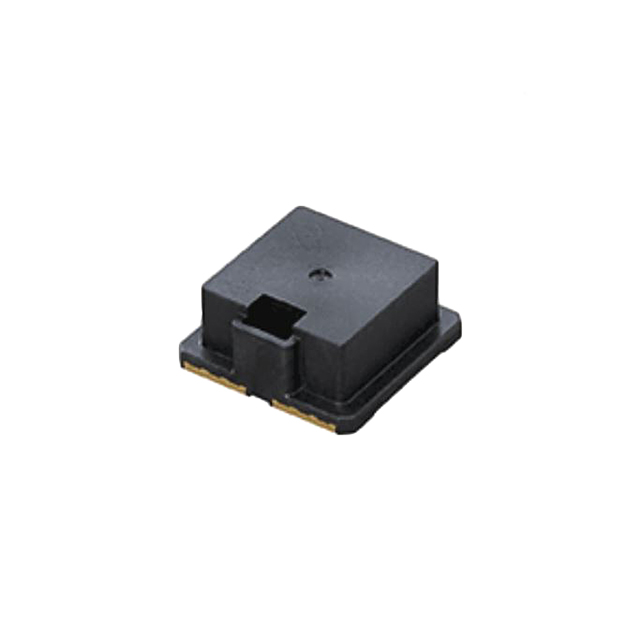

PKMCS0909E4000-R1
Alarms, Buzzers, and Sirens
- Manufacturer No:
- PKMCS0909E4000-R1
- Manufacture:
- Murata Electronics North America
- Datasheet:
- PKMCS0909E4000-R1
- Description:
- AUDIO PIEZO TRANSDUCER 12.5V SMD
In Stock
23801 pcs On sales
$0
Product Parameter
- Packaging
- Digi-Reel®
- Size / Dimension
- 0.354" L x 0.354" W (9.00mm x 9.00mm)
- Input Type
- Zero-Peak Signal
- Height - Seated (Max)
- 0.075" (1.90mm)
- Technology
- Piezo
- Operating Temperature
- -40°C ~ 85°C
- Part Status
- Active
- Sound Pressure Level (SPL)
- 65dB @ 1.5V, 10cm
- Termination
- Solder Pads
- Mounting Type
- Surface Mount
- Port Location
- Side
- Series
- PK
- Voltage Range
- 12.5V (Max)
- Ratings
- -
- Operating Mode
- Single Tone
- Duration
- -
- Voltage - Rated
- 1.5V
- Approvals
- -
- Current - Supply
- -
- Frequency
- 4kHz
- Driver Circuitry
- Transducer, Externally Driven
