9353-0-15-15-18-27-10-0
Terminals - PC Pin Receptacles, Socket Connectors
- Manufacturer No:
- 9353-0-15-15-18-27-10-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 9353-0-15-15-18-27-10-0
- Description:

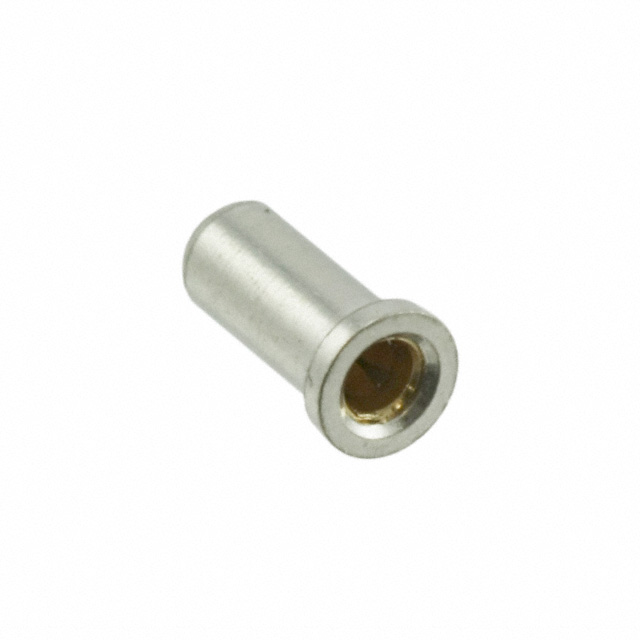

- CONN PIN RCPT .037-.043 SOLDER
In Stock
29555 pcs On sales
$0.43
Product Parameter
- Flange Diameter
- 0.090" (2.29mm)
- Insertion Force
- -
- Series
- 9353
- Contact Material
- Beryllium Copper
- Features
- -
- Length - Overall
- 0.170" (4.32mm)
- Packaging
- Bulk
- Pin Hole Diameter
- 0.054" (1.37mm)
- Tail Type
- No Tail
- Accepts Pin Diameter
- 0.037" ~ 0.043" (0.94mm ~ 1.09mm)
- Part Status
- Active
- Operating Temperature
- -55°C ~ 125°C
- Termination
- Solder
- Mounting Hole Diameter
- 0.071" (1.80mm)
- Socket Depth
- 0.147" (3.73mm)
- Accepts Square Pin Size
- -
- Tail Diameter
- -
- Contact Finish Thickness
- 30.0µin (0.76µm)
- Contact Finish
- Gold
- Board Thickness
- -
