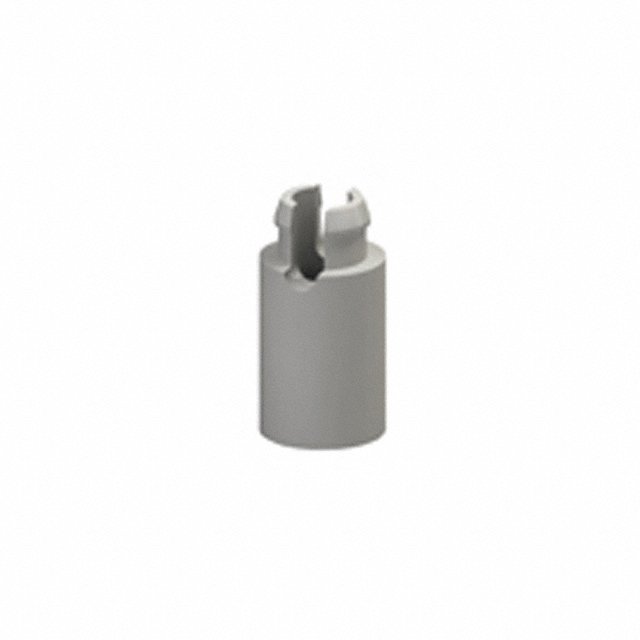

9036-0-00-80-00-00-03-0
Terminals - PC Pin, Single Post Connectors
- Manufacturer No:
- 9036-0-00-80-00-00-03-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 9036-0-00-80-00-00-03-0
- Description:
- CONN PC PIN
In Stock
0 pcs On sales
$0.48
Product Parameter
- Terminal Style
- Wire
- Contact Finish Thickness
- 200.0µin (5.08µm)
- Board Thickness
- -
- Flange Diameter
- 0.040" (1.02mm)
- Contact Material
- Brass Alloy
- Series
- 9036
- Insulation Color
- -
- Packaging
- Bulk
- Length - Overall
- 0.385" (9.78mm)
- Insulation
- Non-Insulated
- Length - Above Flange
- 0.195" (4.95mm)
- Part Status
- Active
- Length - Below Flange
- 0.175" (4.45mm)
- Termination
- Press-Fit
- Material - Insulation
- -
- Mounting Type
- Through Hole
- Mounting Hole Diameter
- 0.033" (0.84mm)
- Terminal Type
- PC Pin
- Pin Size - Above Flange
- 0.018" (0.46mm) Dia
- Contact Finish
- Tin
- Pin Size - Below Flange
- 0.018" (0.46mm) Dia
